·NA Warehouse
·2 Years Warranty
·One controller more fixtures
·Samsung & Philips LED beads
·Inventronics & Meanwell power supply
Ⅰ、Product Description

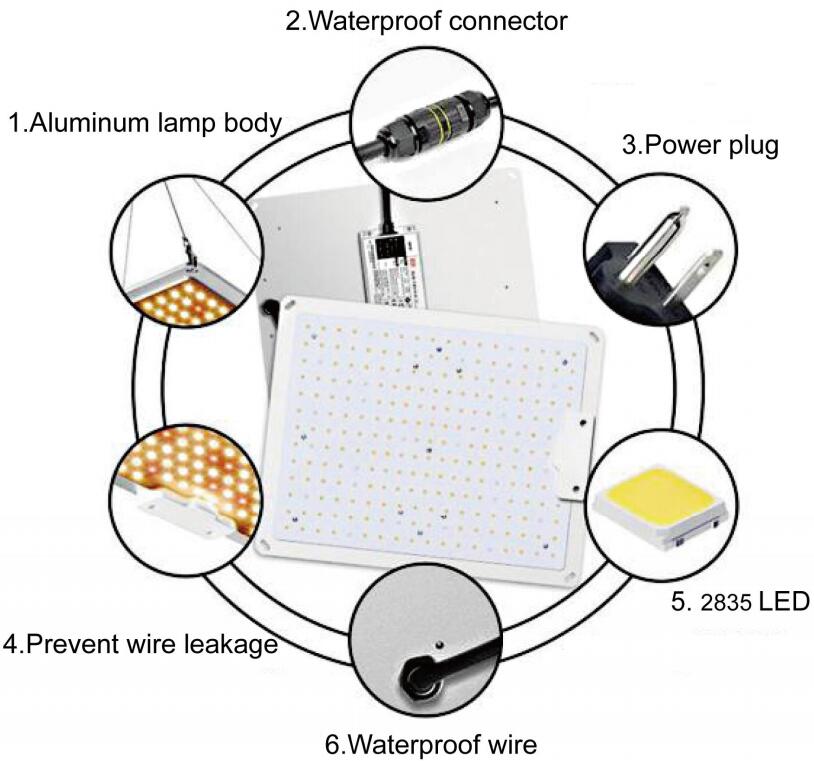

1.The lamp body adopts aluminum 6063 metal material for good heat dissipation,eff ectively improve the heat dissipation problem during product operation and a longer lifespan.
2.Adopts Samsung LED 2835 as light sources,which has the advantages of high performance,low energy consumption and stability.
3.Input voltage:AC100-277V,easy to use,safe and suitable for any country ,LED Lifespan is reach up to 50.000 hours.
4.Suitable for all kinds of plant growth,flowering and yield.
5.Safe and environmental protection,free from pollution and harmful substances.

| Items | GL-100 | GL-200 | GL-400 |
|---|---|---|---|
| PPE | 2.0umol/J | 2.0umol/J | 2.0umol/J |
| PPF | 200umol/s | 400umol/s | 800umol/s |
| Product Size | 300*240*60mm | 600*240*60mm | 600*480*60mm |
| Carton Size | 330*260*80mm | 630*280*80mm | 630*520*80mm |
| N.W/PC | 2.0KG | 2.8KG | 5.6KG |
| G.W/PC | 2.5KG | 3.5KG | 6.5KG |
| Model | Input Power | 100V Amps | 220V Amps | 240V Amps | 277V Amps | Frequency |
|---|---|---|---|---|---|---|
| SL-GLA00-100-D | 100W | 1.0A | 0.2A | 0.42A | 0.36A | 50/60Hz |
| SL-GLA00-200-D | 200W | 2.0A | 0.91A | 0.83A | 0.72A | 50/60Hz |
| SL-GLA00-400-D | 400W | 4.0A | 1.82A | 1.67A | 1.44A | 50/60Hz |

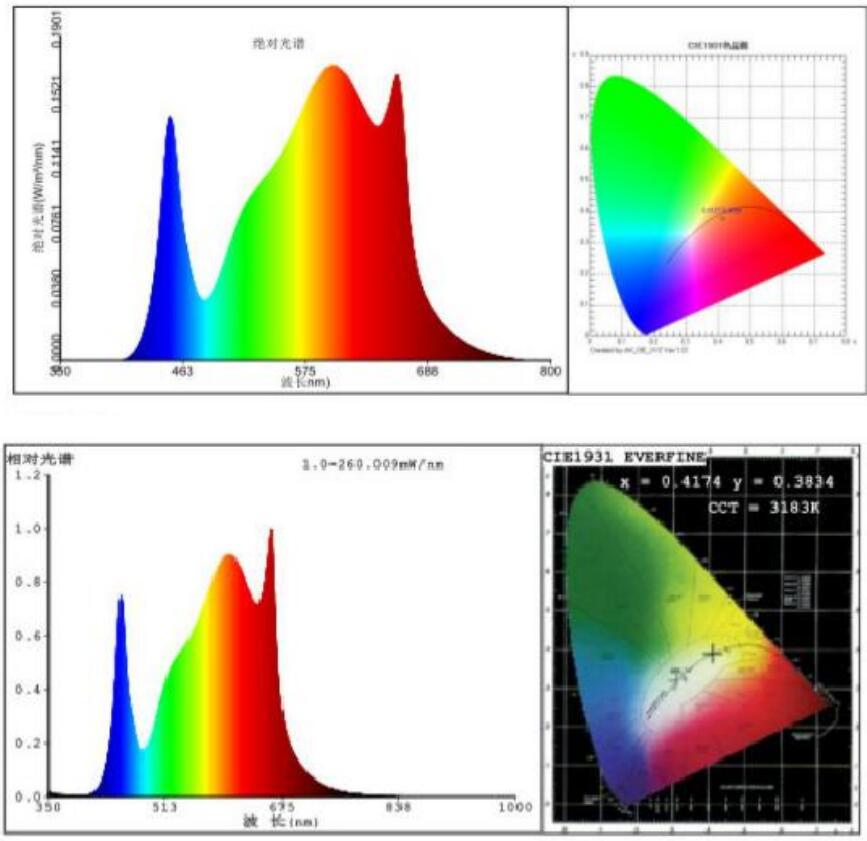

●Full Spectrum,contains unique Red,3000K and 5000K for led grow light.
●The light can replace 3-5 times high-pressure sodium light,saving 80% of electricity,LED Lifespan is reach up to 50.000 hours.
●Built-in power supply with CE certification,on other equipmentconfiguration,direct plug to AC100V-277V voltage safely,on need mirrors and ballasts.
●It can eff ectively promote the growth of plants at various stages,and suitable for providing various plants necessary for photosynthesis in indoor gardens,aqueous solution culture,and soil planting.

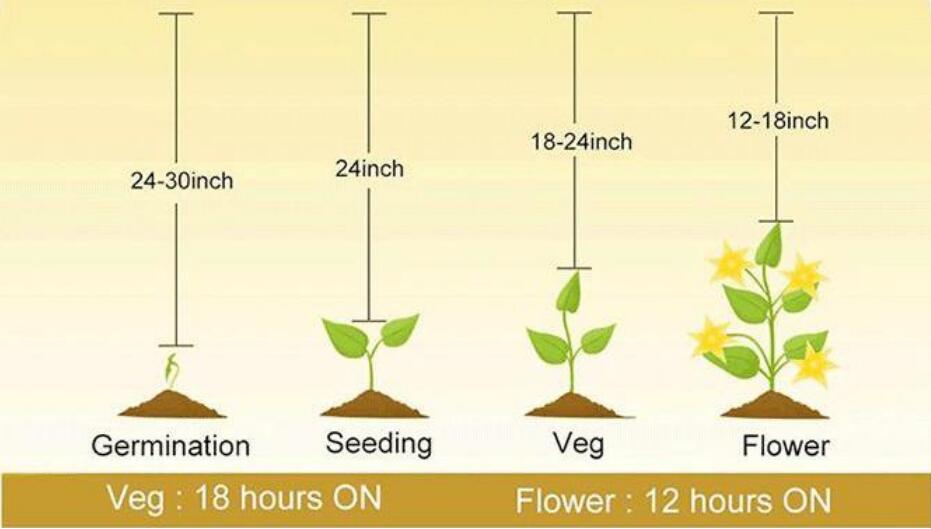

●The illumination area and suspension height of the lamp can be chenged according to diff erent plants and environments,and the technical parameters will change correspondingly.
●All materials used are in line with environmental protection requirementts and do not contain harmful heavy metals such as mercury.
●The illimination area and suspension height of the lamp can be changed according to diff erent plants and environments,and the technical parameters will change correspondingly.
●Uniform light distribution, large illumination area; Adjustable bar quantity,No fan.
◆Install expansion bolt or hook in advance at the location where high bay is to be installed (Load capacity of expansion bolt or hook is three times greater than the weight of high bay).
◆Put the bracket of fixture into the pre-fixed expansion bolts and tighten the screws.

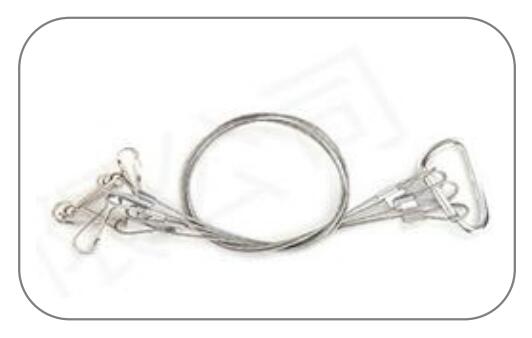

◆Hanging rope installation.
1. Pls read the installation instruction carefully before installation;
2.Do not close to the place with heat source to prevent damaging the line lamp for high temperature;
3. Ensure right wiring;
4. Without permission, do not disassemble the lamps and lanterns;
5. Pls cut off the power source before installation or repair.



Application of LED Grow Light Plant Lamp Products:
* Widely used in greenhouses, plant factories, greenhouse breeding, flower breeding,indoor gardens,
water-soluble breeding, pipeline cultivation, farms, potted plants, spray cultivation,tissue culture and so on.
* This product is suitable for tissue culture and planting of bananas, flowers, Dendrobium candidum, orchids,
tobacco, seaweed, green peppers, eggplant, bitter gourd, tomatoes, grapes, lettuce, lettuce and other medicinal materials,
vegetables and flowers. And is effective for water solution culture or soil culture.
Matters needing attention of LED plant lamp:
1. Plant growth lamp It is forbidden to put the lamp in water or wet environment, otherwise it will cause electric leakage or damage to the lamp body.
2. The working environment of lamps and lanterns is -20~40℃, 45%RH-90%RH.
3. Please cut off the power when it thunders.
4. Do not touch or knock the product at work.
