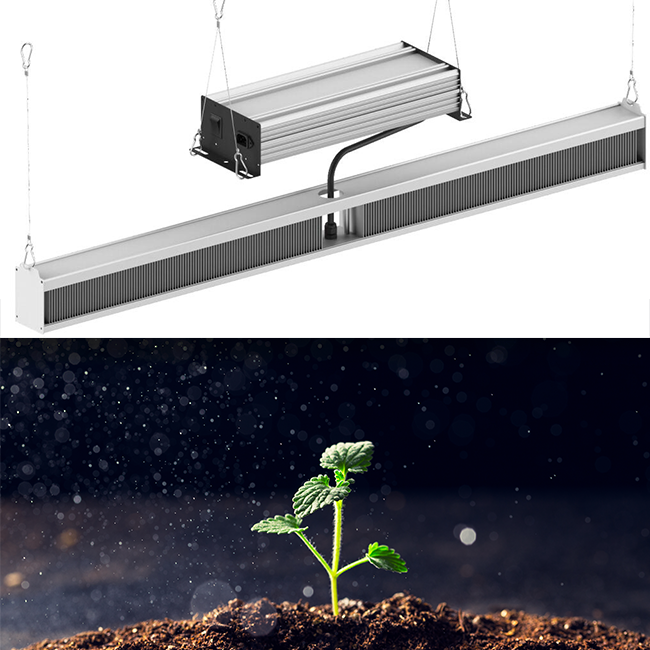

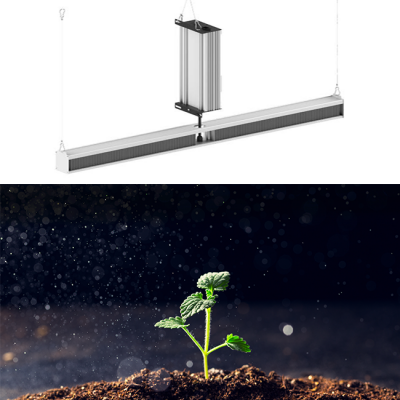

Ⅰ、Product Description
1.The lamp body adopts aluminum 6063 metal material for good heat dissipation, effff ectively improve the heat dissipation problem during product operation and a longer lifespan
2.Adopts Samsung LED 2835 as light sources, which has the advantages of high performance, low energy consumption and stability.
3.Input voltage: AC100-277V, easy to use, safe and suitable for any country. LED Lifespan is reach up to 50,000 hours.
4.Suitable for all kinds of plant growth, flflowering and yield
5.Safe and environmental protection, free from pollution and harmful substances.

The relationship between the installation height of the light and illuminance, this light can be hung 2.5 feet high.
| Welcome | |||||
|---|---|---|---|---|---|
| Warranty | 3 year | Thermal Management | passive | Power Factor | >90% |
| Items | GL-480 | GL-600 |
|---|---|---|
| PPE | 2.5umol/J | 2.5umol/J |
| PPF | 1200umol/s | 1500umol/s |
| Product Size | 900*70*60mm | 1100*70*60mm |
| Carton Size | 960*190*180mm | 1160*190*180mm |
| N.W/PC | 7.5KG | 9.2KG |
| G.W/PC | 9KG | 10.7KG |
| Model | Input Power | 100V Amps | 220V Amps | 240V Amps | 277V Amps | Frequency |
|---|---|---|---|---|---|---|
| SL-GLA00-480-E | 480W | 4.8A | 2.2A | 2.0A | 1.8 A | 50 / 60Hz |
| SL-GLA00-600-E | 600W | 6A | 2.7A | 2.5A | 2.1A | 50 / 60Hz |

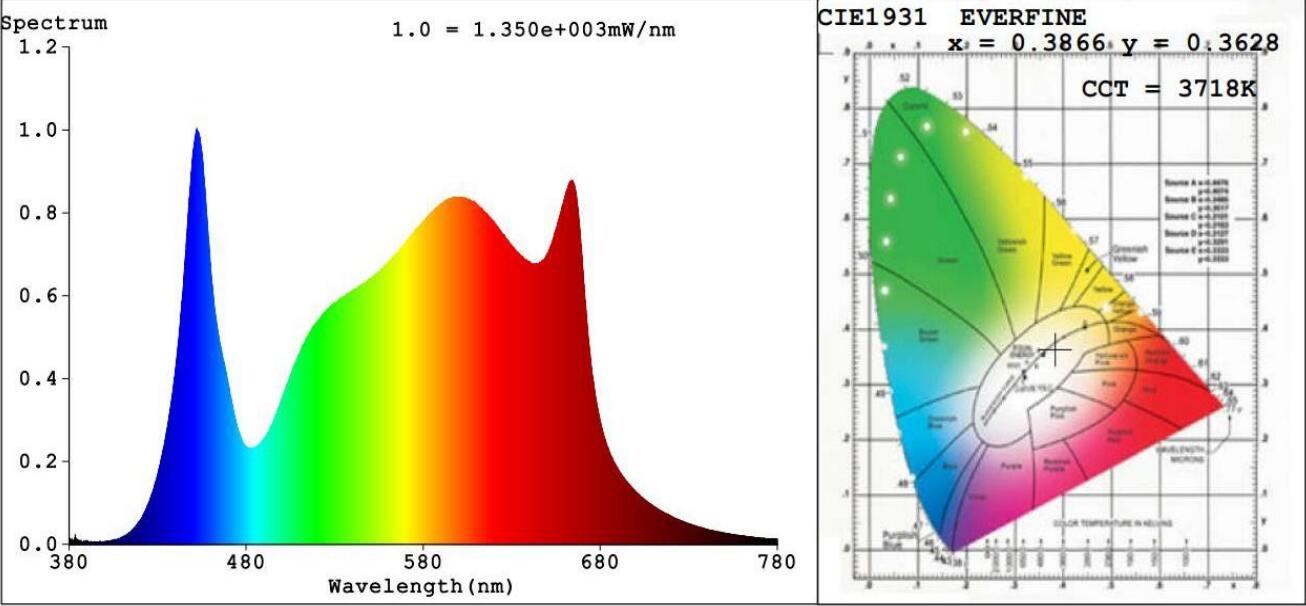

●Full Spectrum,contains unique Red,3000K and 5000K for led grow light.
●The light can replace 3-5 times high-pressure sodium light,saving 80% of electricity,LED Lifespan is reach up to 50.000 hours.
●Built-in power supply with CE certification,on other equipmentconfiguration,direct plug to AC100V-277V voltage safely,on need mirrors and ballasts.
●It can eff ectively promote the growth of plants at various stages,and suitable for providing various plants necessary for photosynthesis in indoor gardens,aqueous solution culture,and soil planting.
●The illumination area and suspension height of the lamp can be chenged according to diff erent plants and environments,and the technical parameters will change correspondingly.
●All materials used are in line with environmental protection requirementts and do not contain harmful heavy metals such as mercury.
●The illimination area and suspension height of the lamp can be changed according to diff erent plants and environments,and the technical parameters will change correspondingly.
●Uniform light distribution, large illumination area; Adjustable bar quantity,No fan.
◆Install expansion bolt or hook in advance at the location where high bay is to be installed (Load capacity of expansion bolt or hook is three times greater than the weight of high bay).
◆Put the bracket of fixture into the pre-fixed expansion bolts and tighten the screws.
◆Hanging rope installation.
1. Pls read the installation instruction carefully before installation;
2.The brown wire is live line (L), the blue wire is zero line (N) and the green yellow wire is earth line (E );
3.Do not close to the place with heat source to prevent damaging the line lamp for high temperature;
4. Ensure right wiring;
5. Do not disassemble the UFO without permission;
6. Pls cut off the power source before installation or repair.
