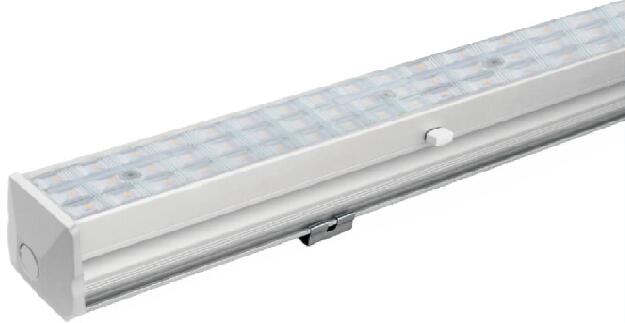

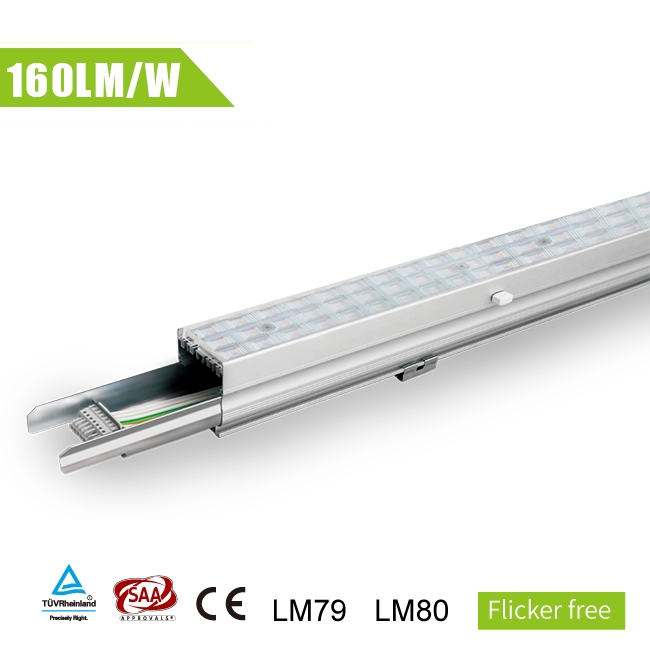

LN02 LED linear light detail
Performance Parameters
● Luminance Efficacy: Clear Cover: 160lm/w.
● Input Voltage: AC100-240V
● Power Consumption: 45W/60W/72W
● Color Temperature:3000K/4000K/5000K/6000K
● CRI>80
● PF>0.95
● Beam Angle:30°/ 60° / 90° / 120°
● Operation Temperature: -20~48℃ (-4~104℉)
● LED Type: 2835 LED,Epistar / Philips.
● Lifespan: 50,000hours
● Driver Brand: Isolation Driver.
1. The main parts of Linear light are made of 6063 aviation aluminium, perfect in heat dispatching,
lead-free,environmental,the light is bright but soft, no harm to humanbeings, the light has passed
EMC, LVD ROHS lab test and CE certification is available for it.
2. PMMA Lens: 30/60/90/120/Double 25°(left and right),asymmetric Left or Right.
3. Size:0.6M/1.2M/1.5M, 0.6M---30W(maximum),1.2---40W(maximum),1.5M---60W(maximum).
4. Driver: Philips X driver, Lifud driver(Isolated driver), 5 years warranty.
5. Installation: Suspending/surface mounted.
| Size |
1.5M |
1.2M |
0.6M |
Remmarks |
| Input Voltage |
220-240V |
|
| Driver Efficacy |
≥90 |
|
| Output Wattage |
40-72W |
30-50W |
16-30W |
Wattage can be customized |
| Output Voltage |
100-220Vdc |
100-170Vdc |
50-80Vdc |
Voltage can be ajusted |
| Output Current |
0.12-0.4A |
0.12-0.3A |
|
| Light Type |
Class1 |
|
| Efficacy |
160lm/W |
|
| CRI |
Ra≥80 |
CRI>90 is available |
| Beam Angle |
30/60/90/120//Double 25°,asymmetric L or R |
|
| LED Chips |
SMD2835 |
|
| Lifespan |
>50000hrs |
|
| Warranty |
5 years warranty |
|
| CCT |
3000K/4000K/6000K |
Other colores can be customzied(free) |
| Working Temp |
-25℃～60℃ |
|
| Installation |
1.Suspending/ 2.surface mounted |
|
| Total Power |
＜3300W |
|
| Dimmable |
Yes |
|
| Mercury free |
Yes |
|
| Connection mode |
Stitchable |
|
| Start timing |
0.5s-2s |
|
| Heating time(60%) |
0.5s |
|
| IP protection level |
IP20 |
|
| Certificates standard |
TUV / SAA / CE / RoHS / LM79 / LM80 |
|
| Energy efficiency rating |
A++ |
|
BEAM ANGLE

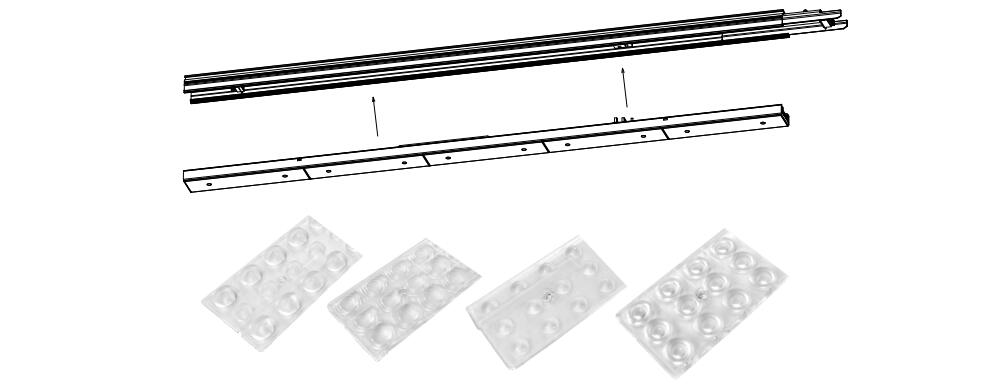

Different diffuser for different distribution
Optics
A wide range of optics from sharp to wide distribution, as well as asymmetric.

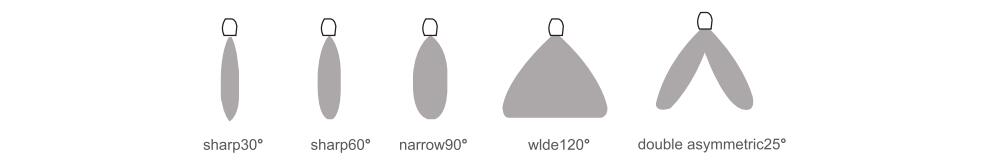

sharp distribution,30 degree. flat distribution, 120 degree.
narrow distribution, 60 degree. asymmetric distribution.
wide distribution, 90 degree. double asymmetric distribution

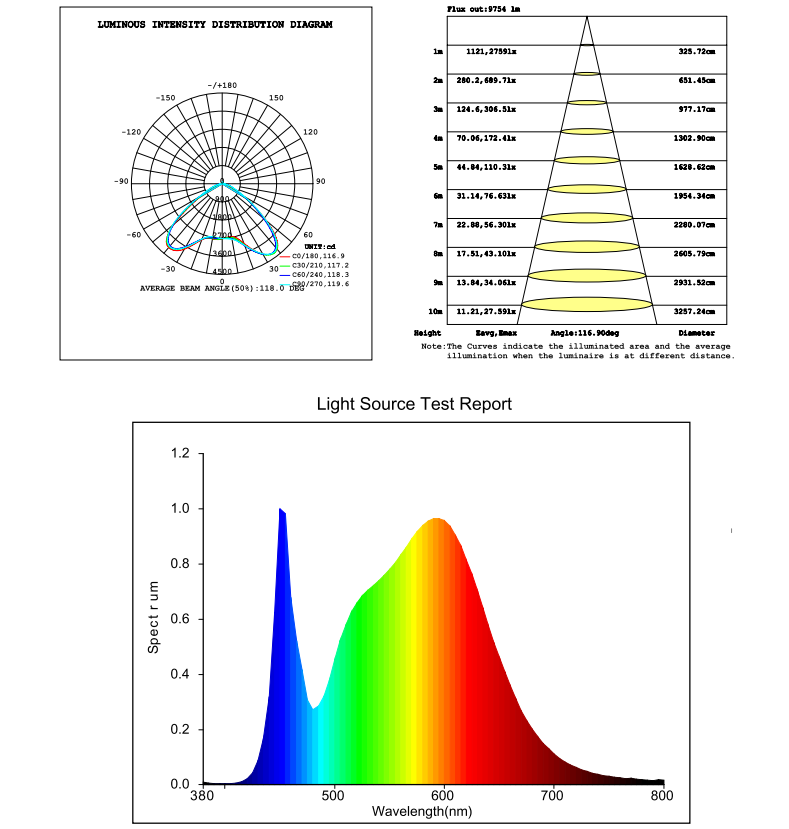

Test Report (SL-LLA01-RE570-L-1202)

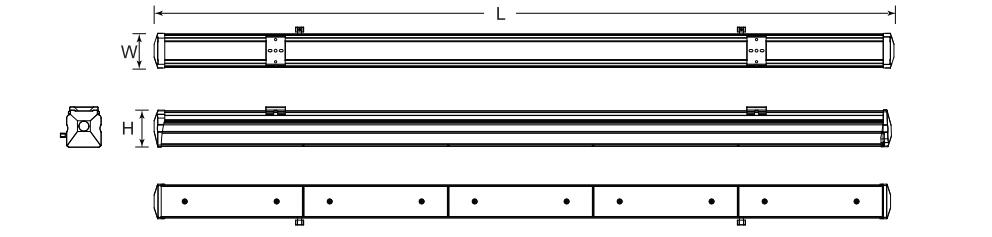

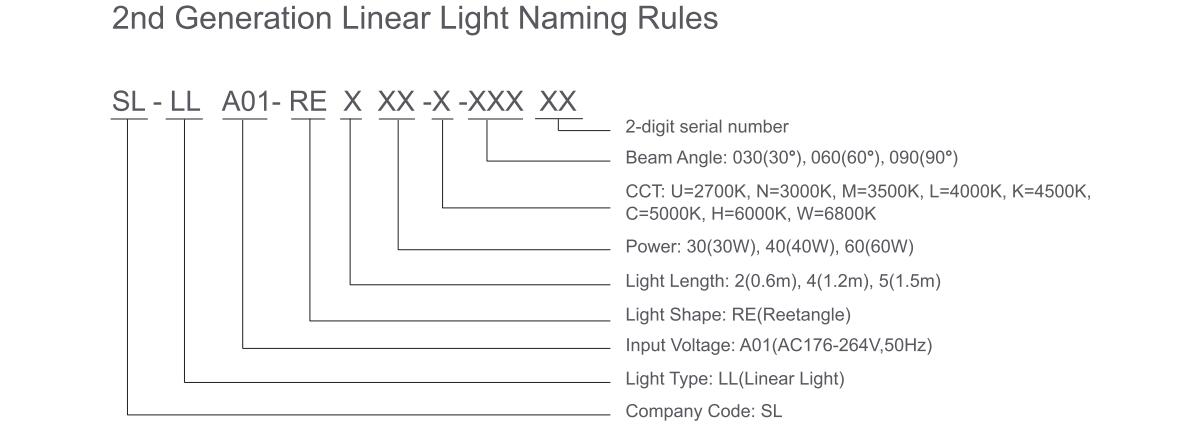

A: Dimension of single linear light(not linkable)
| Model |
Wattage |
Length |
Width |
Height |
| SL-LLA01-RE5XX-L-06002 |
40-72W |
1456mm |
65mm |
70mm |
| SL-LLA01-RE4XX-L-06002 |
30-50W |
1170mm |
65mm |
70mm |
| SL-LLA01-RE2XX-L-06002 |
16-30W |
598mm |
65mm |
70mm |

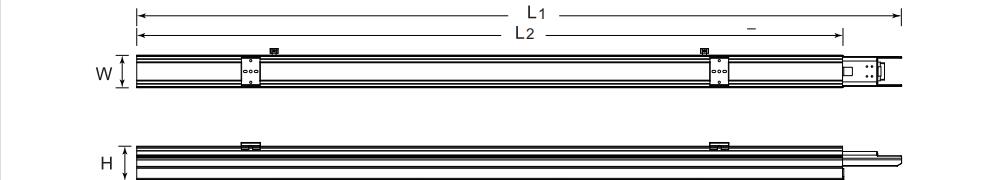

B: Linkable Linear Light
| Model |
Wattage |
Length(L1) |
Width(L2) |
Width |
Height |
| SL-LLA01-RE572-L-06002 |
72W |
1576mm |
1436mm |
65mm |
70mm |
| SL-LLA01-RE450-L-06002 |
50W |
1290mm |
1150mm |
65mm |
70mm |
| SL-LLA01-RE230-L-06002 |
30W |
717mm |
577mm |
65mm |
70mm |

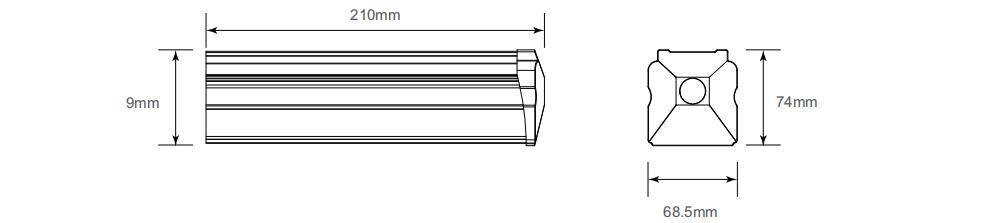

Dimension

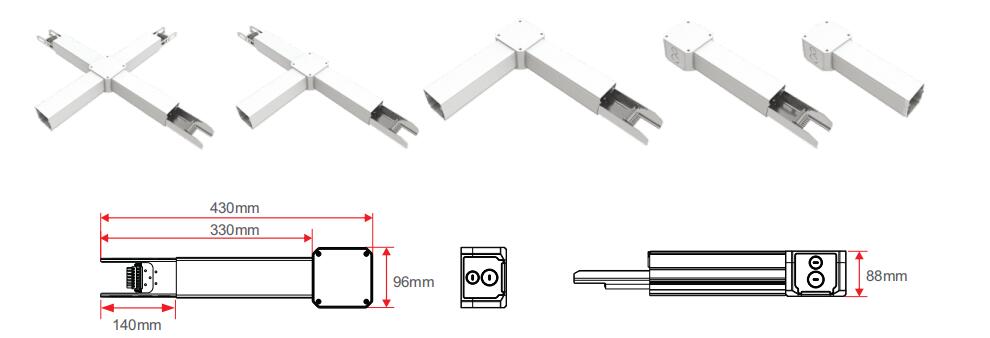

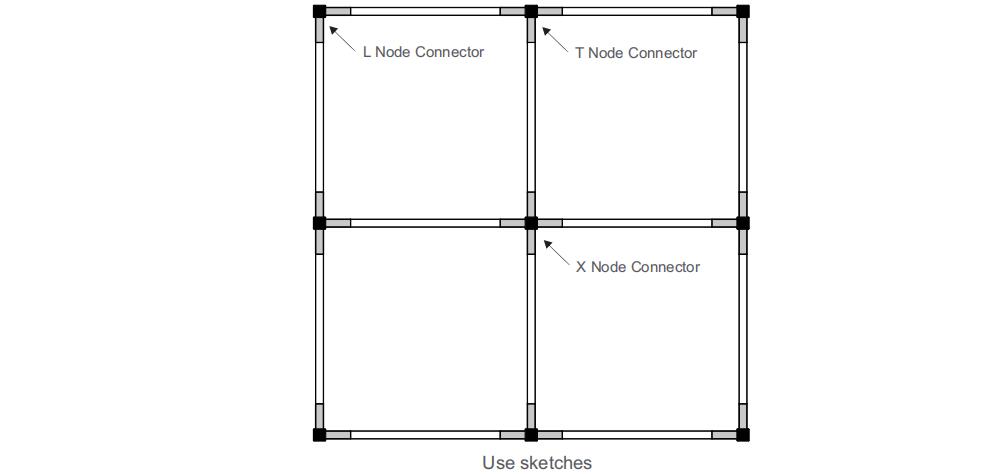

All system components can be combined without tools. L, T and X connectors expand the system‘s application range.
Each node connector has diverse of electrical feed-in and feed-out. The node connector is not only to connect the cross trunking, but also to connect the wire inside the trunking. And the node connector itself could even be the electricity teed-in point.
Connection mode

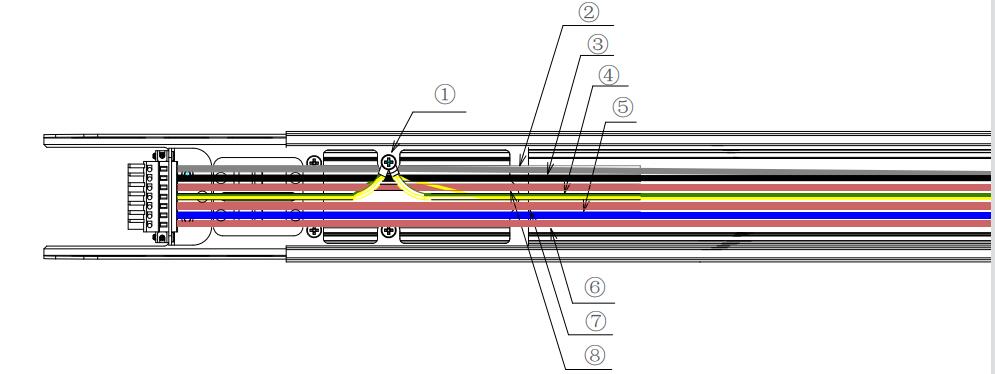

① Grounding position ② Grey wire(dimming wire) DALI dimming positive or 0-10V dimming positive
③ White wire(dimming wire) DALI dimming negative or 0-10V dimming negative ④ Yellow-green wire(ground wire)
⑤ Blue wire(Neutral wire) ⑥⑦⑧ Brown wire(Live wire)
pre-wired 3-phases &2.5mm power supply
Phase conversion function with connector
Allowing Max 16A and 200 meters trunking length in 3-phases power supply system
Endless combination with diversified modules
Tool-free installation
Node connectors enable system to be connected in different directions
Dimming. Sell-battery emergency or central emergency function as options

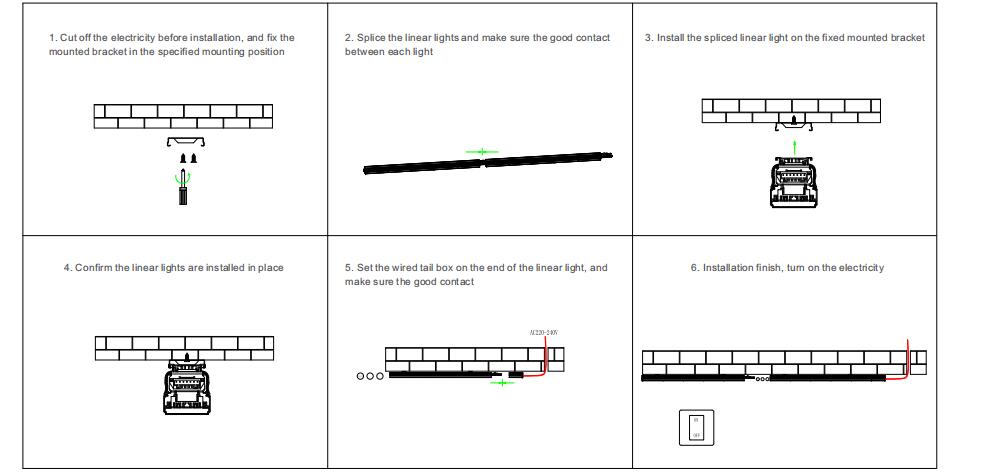

Support surface ceiling mounting and suspension

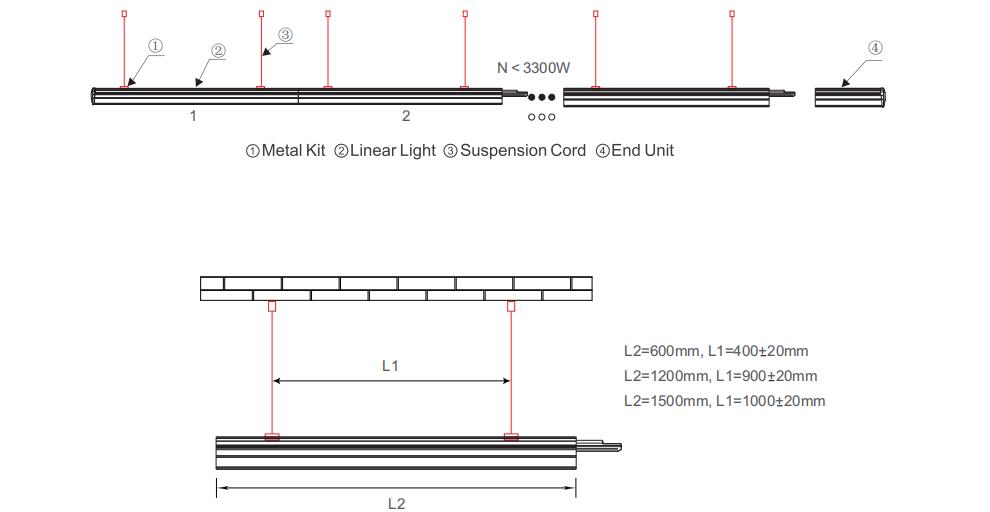

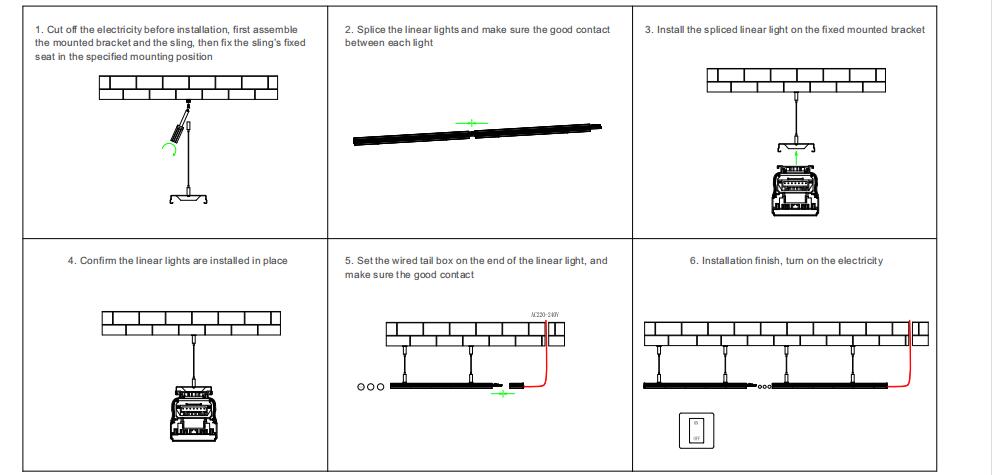

Suspension mounted diagram
Surface mounted diagram
