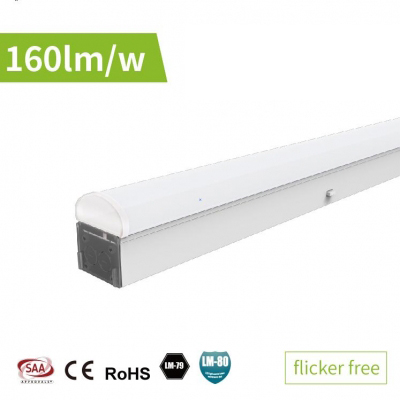

LN03T LED linear light detail
Performance Parameters
Luminous Efficiency: 160lm/W & 180lm/w
LED Type: 2835 LED, Epistar/Philips
Input Voltage: AC176~264V
CCT: 2700~6500K
CRI: >80
PF: >0.95
Beam Angle: 30°/60°/90°/120°/Double 25°/asymmetric L or R / 120°（frosted cover）
Driver Brand: Standard Flicker Free —— Non-isolated Driver
DALI 1-10V —— Isolated Driver
Working Temperature: -20℃-48℃

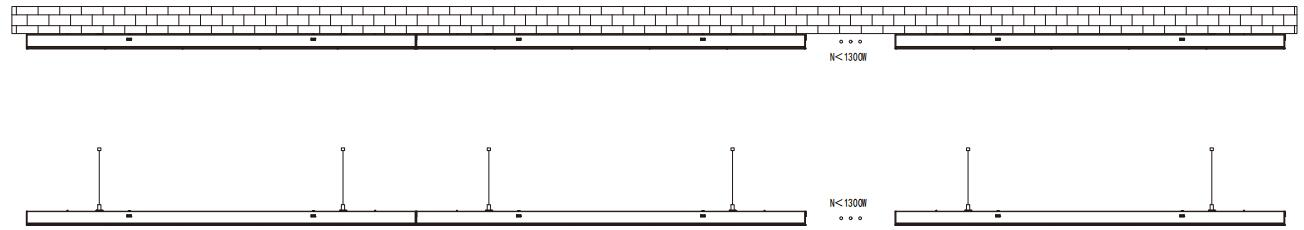

Linkable
Difffferent diffffuser for difffferent distribution
Normal

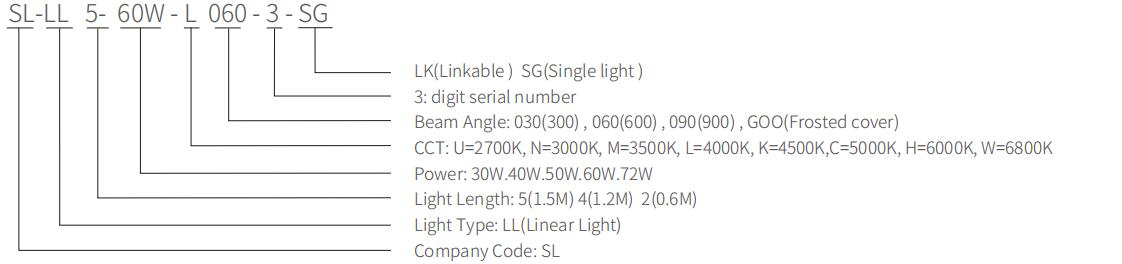

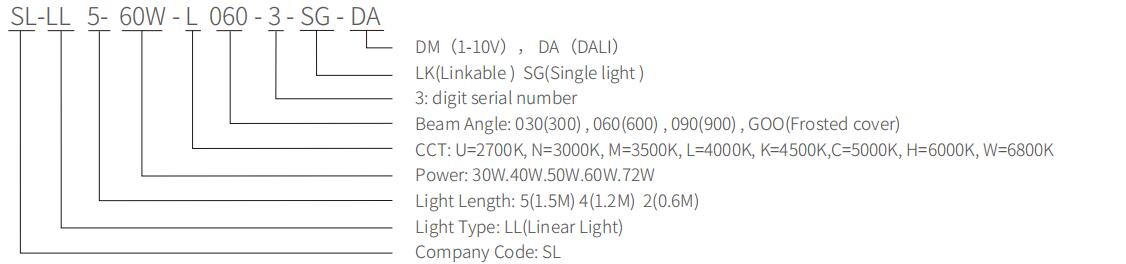

Product Model
-160lm/w-
| Model |
Length |
CCT |

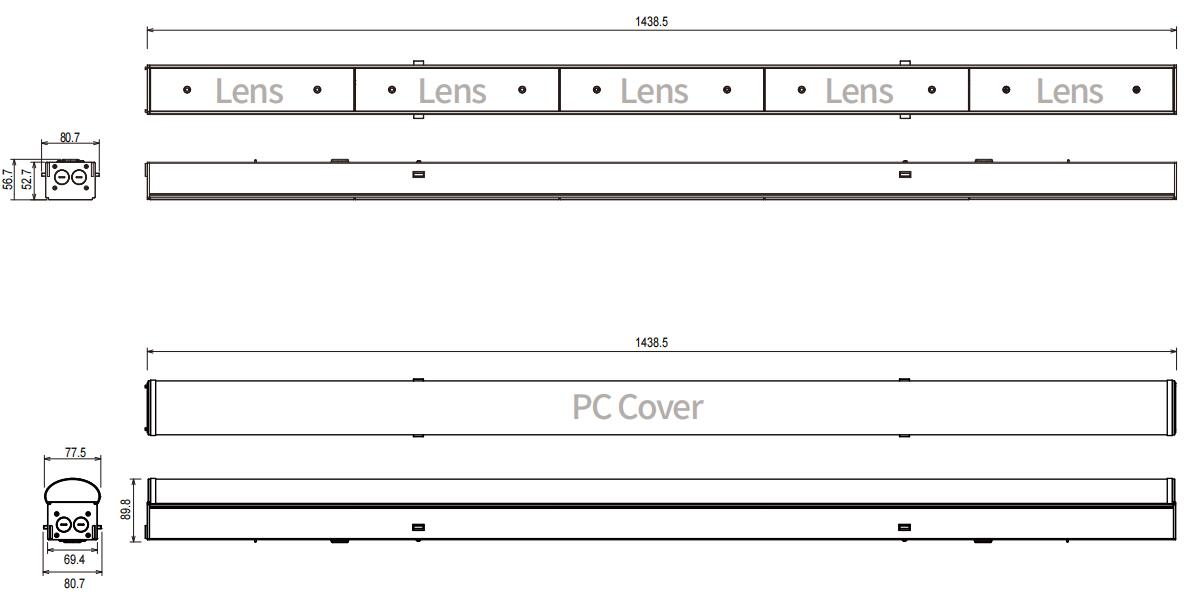

Size(mm) |
Carton(mm) |
G.W. |
| SL-LL2-30W-L060-3-SG |
60cm (2 feet) |
2700K~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg/4PCS |
| SL-LL5-60W-L060-3-SG |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg /4PCS |
| SL-LL2-30W-LGOO-3-SG |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg/4PCS |
| SL-LL4-40W-LGOO-3-SG |
120cm (4 feet) |
L1138.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg /4PCS |
| SL-LL5-60W-LGOO-3-SG |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |
-180lm/w-
| Model |
Length |
CCT |
Size(mm) |
Carton(mm) |
G.W. |
| SL-LL2-30W-L060-3-SG |
60cm (2 feet) |
2700K~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg/4PCS |
| SL-LL5-60W-L060-3-SG |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg /4PCS |
| SL-LL2-30W-LGOO-3-SG |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg/4PCS |
| SL-LL4-40W-LGOO-3-SG |
120cm (4 feet) |
L1138.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg /4PCS |
| SL-LL5-60W-LGOO-3-SG |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |

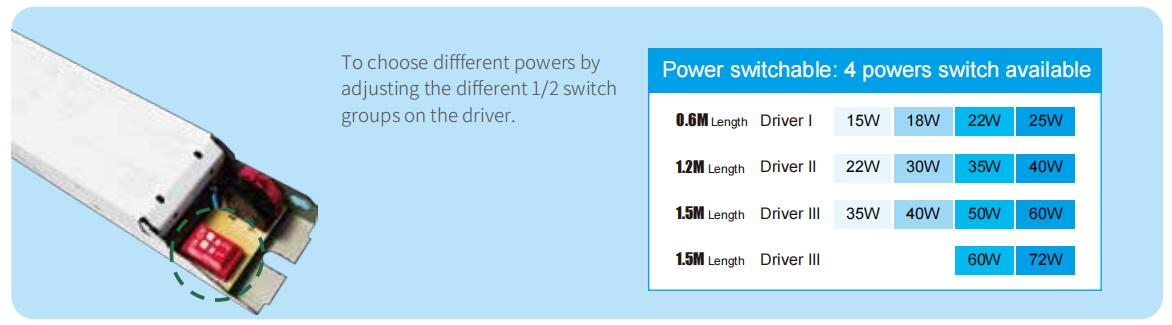

Switch Groups

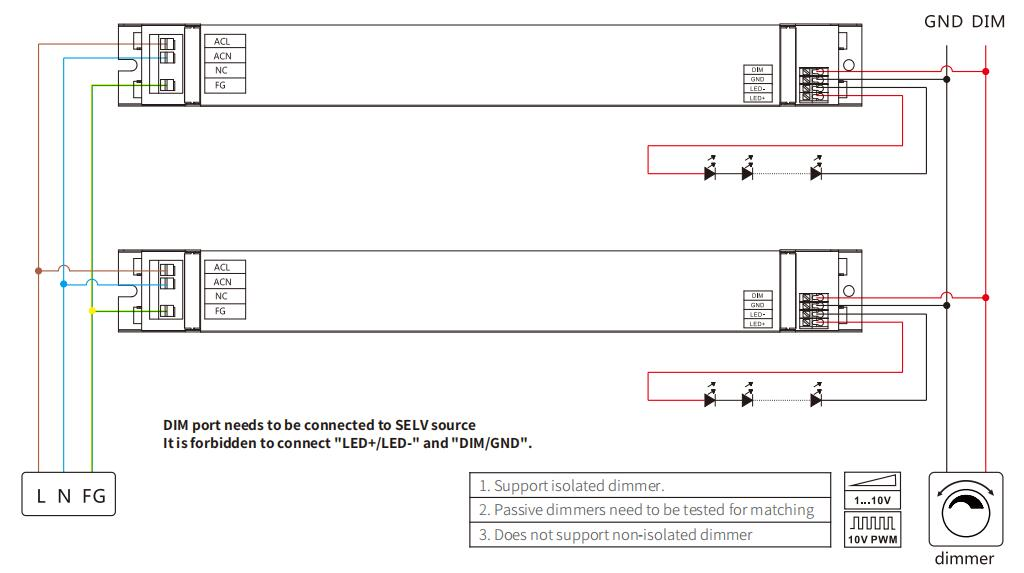

1-10V Dimmable
1. Support IOOK potentiometer dimming
2 Support 1-10V/10V PWM dimming
3. Support sensor dimming
4. No stroboscopic at any brightness, in line with non-strobosc
opic standards
(IEEE Std 1789-2015)
5. The minimum dimming brightness is 3%
6. Boot time is less than 0.5s, standby power is less than 0.5W

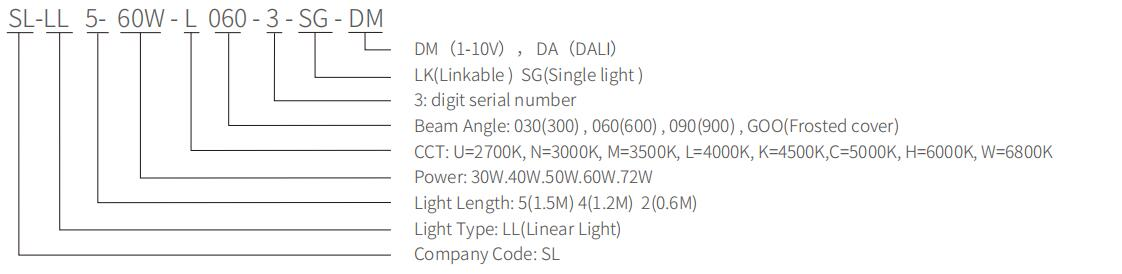

Product Model
| Model |
Length |
CCT |
Size(mm) |
Carton (mm) |
G.W. |
| SL-LL2-30W-L060-3-SG-DM |
60cm (2 feet) |
2700K ~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG-DM |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg /4PCS |
| SL-LL5-60W-L060-3-SG-DM |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg/4PCS |
| SL-LL2-30W-LGOO-3-SG-DM |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg/4PCS |
| SL-LL4-40W-LGOO-3-SG-DM |
120cm (4 feet) |
L1138.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg/4PCS |
| SL-LL5-60W-LGOO-3-SG-DM |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |

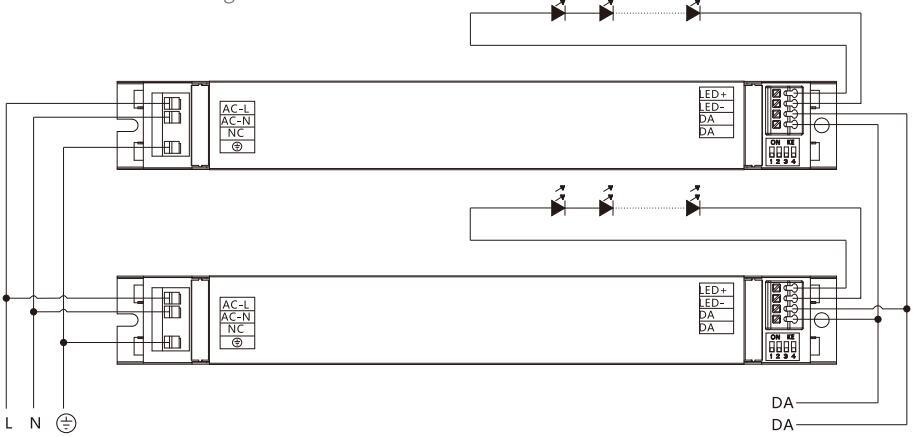

DALI Dimmable
1.180-264VAC input
2. Class I power supply, with FG, no flflicker
3. Built-in active power factor correction circuit, high PF, low THD
4 Output dimming can be turned offff, and the standby power is less than 0.5W
5. Quick start, power-on start time is less than 0.5s
6. 10 kinds of output current can be selected through the code switch
7. Supports simultaneous dimming of multiple products in parallel
8. Natural cooling
9. Built-in DALI dimming function
Product Model
| Model |
Length |
CCT |
Size(mm) |
Carton (mm) |
G.W. |
| SL-LL2-30W-L060-3-SG-DA |
60cm (2 feet) |
2700K ~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG-DA |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg /4PCS |
| SL-LL5-60W-L060-3-SG-DA |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg/4PCS |
| SL-LL2-30W-LGOO-3-SG-DA |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg /4PCS |
| SL-LL4-40W-LGOO-3-SG-DA |
120cm (4 feet) |
L583.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg/4PCS |
| SL-LL5-60W-LGOO-3-SG-DA |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |

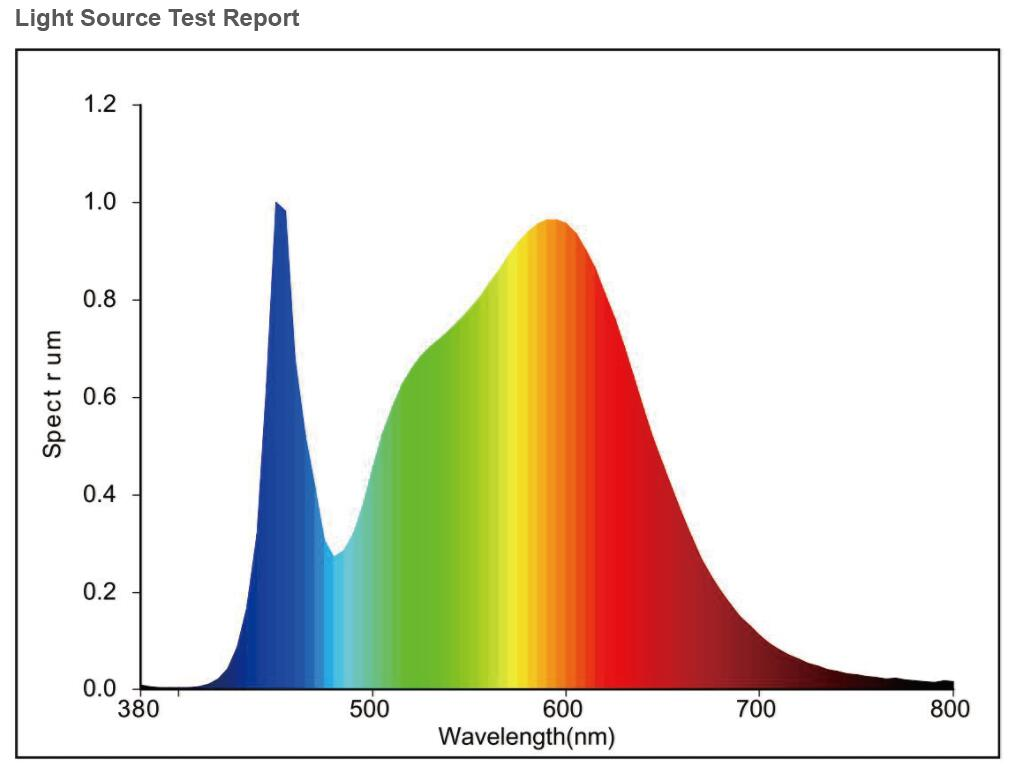

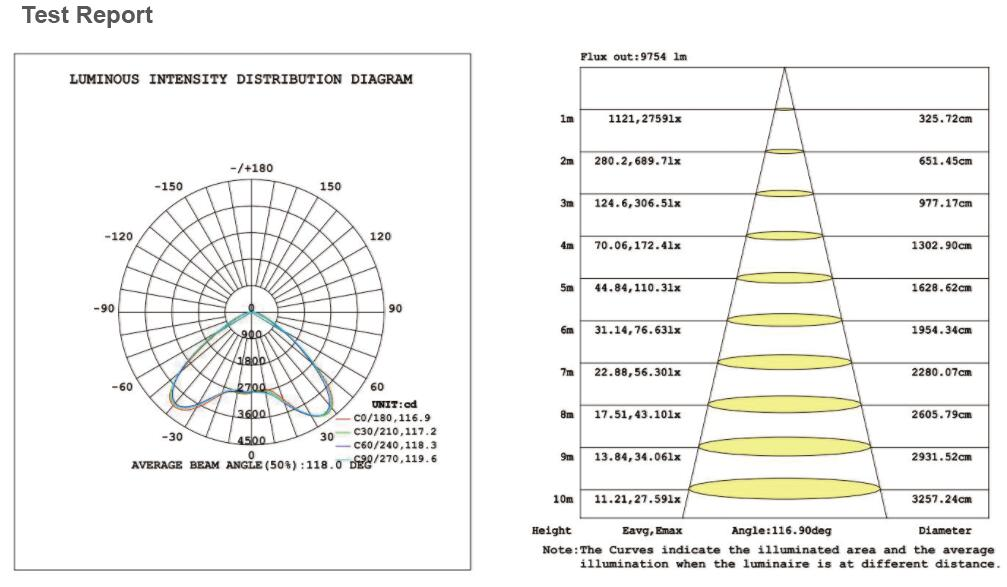

Light test report

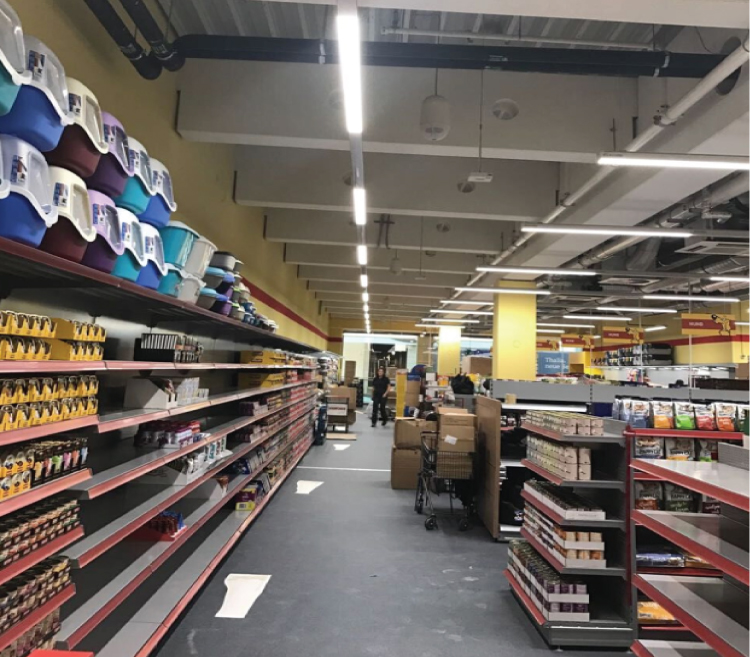

Case
