LED Street Lights

< >

LED Street Light SL-ST06 30W-200W

LED Street Light F Series

TypeName：LED Street Light F Series
Model: SL-STA00-30Y-XX-F
Specifications: CE ROHS

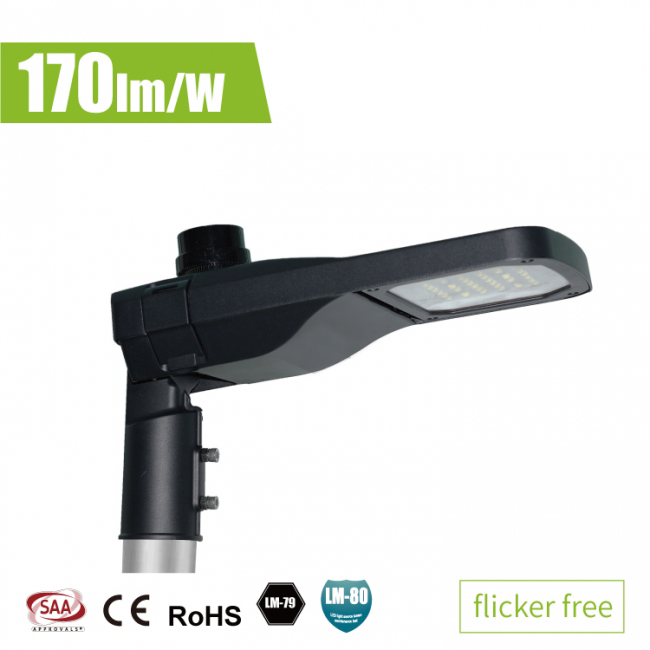

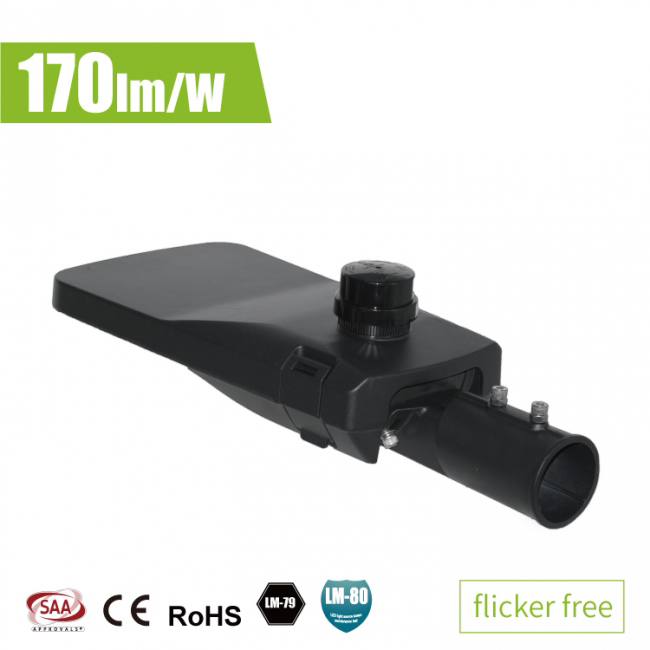

ST06 LED Street Light F Series

Performance Parameters
● Luminous Efficiency: 170lm/W
● Input Voltage: 100-240VAC 50/60Hz
● Power Consumption: 30W/50W/70W/100W/120W/150W/200W
● Color Temperature: 4000K 5000K
● Color Rendering Index:Ra>70 and Ra>80
● PF>0.95
● Beam Angle: TYPE II / TYPE III
● Working Temperature: -40~45℃
● LED Type: 5050
● Lifespan: 50,000hours

Specification

Model	30W		50W		70W		100W		120W		150W		200W
PF	>0.95
Input Voltage(V)	100-240VAC
CRI	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80
Efficacy (lm/W)±5%	170	160	170	160	170	160	170	160	170	160	170	160	170	160
Lumen Output±5%	5100	4800	8500	8000	11900	19200	17000	16000	20400	19200	25500	24000	34000	32000
CCT (K)	4000K / 5000K
Dimming	Non-Dimming (Default) / 1-10V Dimming
Intelligent Control	Photo cell / DALI Control
Beam Angle	TYPE II / TYPE III
Material	Die-Cast + Glass
Operating Tenperature	-40℃ ~ 45℃
Humidity	10%~90%
Installation	POLE
LED Type	5050
Power Supply	ZH/SS
Surge Protection	4kV line-line, 6kV line-earth
Certification	CE / RoHS / SAA
IP Rate	IP65
Warranty	5 Years

Packing

Model No.	Power(W)	Size(mm)	Carton Size(mm)	G.W/1PCS±0.2KG
SL-STA00-30Y-XX-F	30W	L396(15.59in)W185(7.28in)H101(3.97in)	L620W280H155	4.94KG
SL-STA00-50Y-XX-F	50W	L431(16.96in)W233(9.17in)H99(3.89in)	L630W280H155	4.94KG
SL-STA00-70Y-XX-F	70W	L481(18.93in)W272(10.7in)H99(3.89in)	L670W310H155	6.50KG
SL-STA00-100Y-XX-F	100W	L481(18.93in)W272（10.7in)H99(3.89in)	L670W310H155	6.50KG
SL-STA00-120Y-XX-F	120W	L481(18.93in)W272(10.7in)H99(3.89in)	L670W310H155	6.70KG
SL-STA00-150Y-XX-F	150W	L622(24.00in)W301(11.85in)H103(4.05in)	L820W340H155	8.90KG
SL-STA00-200Y-XX-F	200W	L622(24.00in)W301(11.85in)H103(4.05in)	L820W340H155	9.10KG

Description:

Model name description: SL-STA00-30Y-XX-F.

“SL” indicates the name of company producing the product;

“ST” indicates the product is a LED Sreet Light;

“A00” indicates the voltage of the product;

“30” indicates the power of the product,it can be 50、70、100、120、150、200；

“Y” indicates the colour temperature of the product. “Y” can be N=3000K,M=3500K,L=4000K,K=4500K,C=5000K,H=5700K

represents color temperature；

Where“ XX ”represent light angle, it can be T I,T II,T III,T IV,T V;

“F” indicates the shape size.

Structure drawing

StructurePerformance

Housing	Die-Cast
Cover:	Glass
Cable Length:	400mm
IP Rate:	IP65
IK Rate:	IK08

Smart Structure

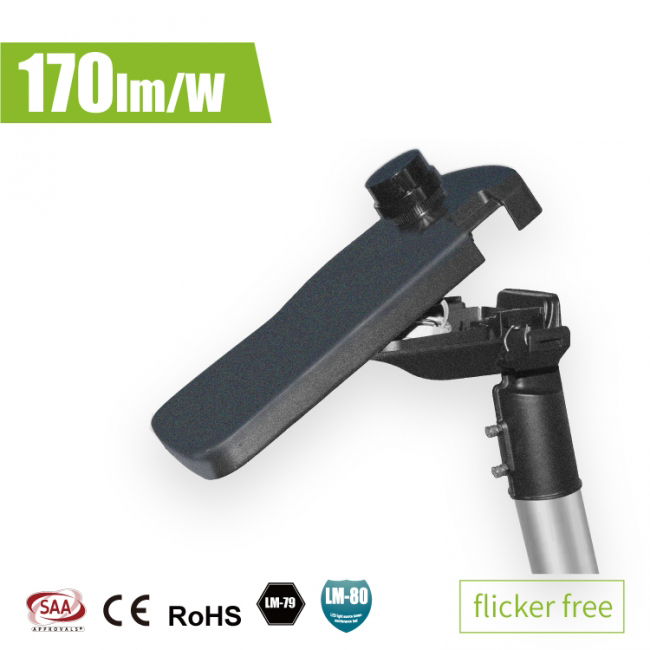

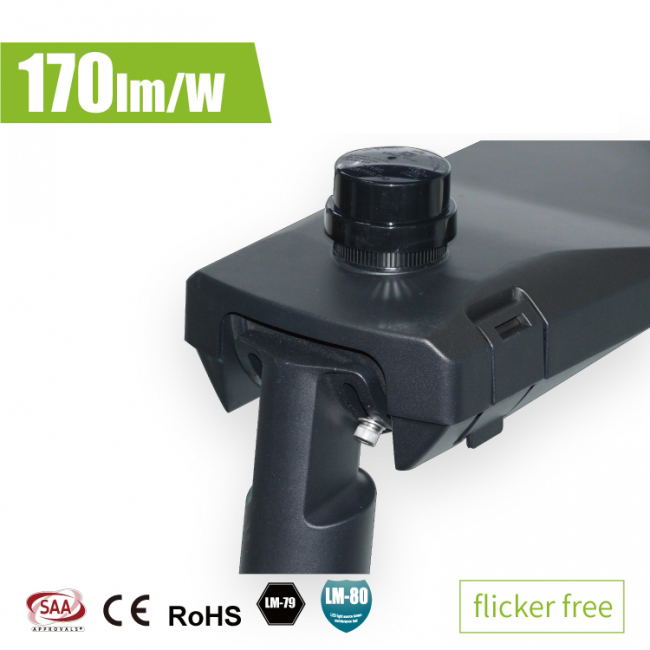

Free-tool Maintenance

It is separated by two parts. There is a button at the roof cover, push it and unlock the driver.

With this smart structure, only one person can finish it without any tools in one minute to maintain.

Beam angle

Efficiency up to 170lm/w

This is a world class street light in terms of easy maintenance, high lumen efficiency, much energy saving as well as consideration and respect for the environment.

Full Power for Various Roads

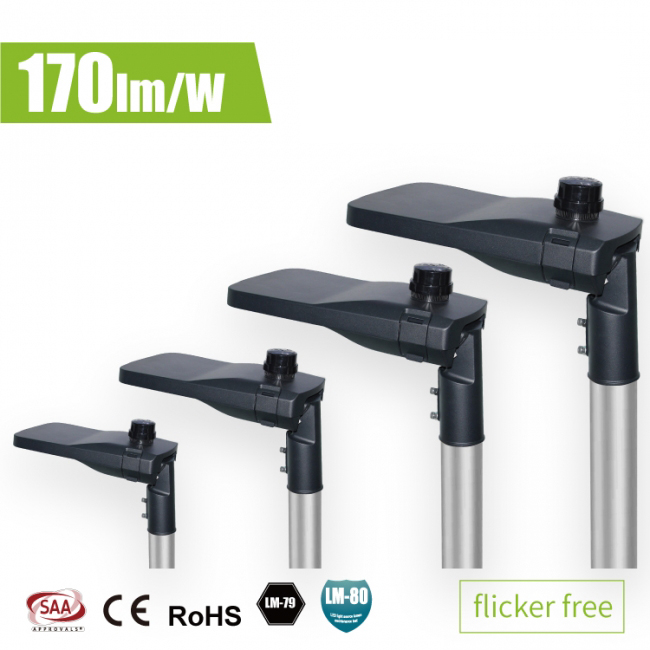

ST06 has four sizes that compatible with different power which happens for all kinds of roads.

Structure drawing

Test Item	Structure Classification	Testing Conditions	Testing parameters	Testing Time	Limiting Value
Hipot	▪ Class I	input-shell	1000+4U(AC)	1min	10mA Max.
	▪ Class I	input-shell	2000+4U(AC)	1min	10mA Max.
	▫ Class III	input-shell	500Vdc	1min	10mA Max.
Insulation Resistance	▪ Class I	input-shell	500Vdc	1min	2MΩ Min.
	▫ Class II	input-shell	500Vdc	1min	4MΩ Min.
	▫ Class III	input-shell	100Vdc	1min	1MΩ Min
Leakage Current	▪ Class I	input-shell	220V/50Hz	10S	0.5mA Max.
Leakage Current	▫ Class II	input-shell	220V/50Hz	10S	1.0mA Max.
Cround Resistance	▪ Class I	Grounding wirmetal shell	10A	1min	500mΩ Max.

Product Certification

Certification Categories	Conform to the standard specification	Meet Certified	Certified
CE	EN60598-1; EN60598-2-1; EN62493; EN55015; EN61000-3-2; EN61000-3-3; EN61547; EN62471	√	√
SAA	IEC60598-2-1:1979(First Edition)+A1:1987 used in conjunction With IEC60598-1:2014(Eighth Edition)	√	√
ROHS	2011/65/EU directive (RoHS 2.0)	√
Energy Star	ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures) Eligibility Criteria Version 2.0
