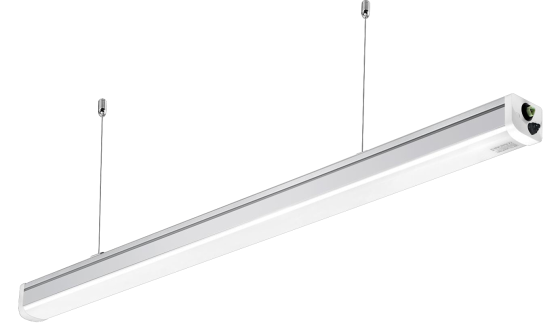

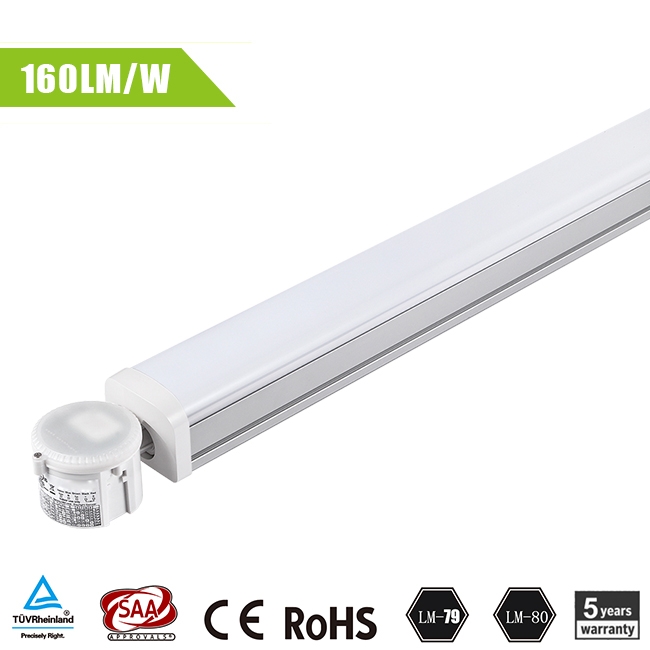

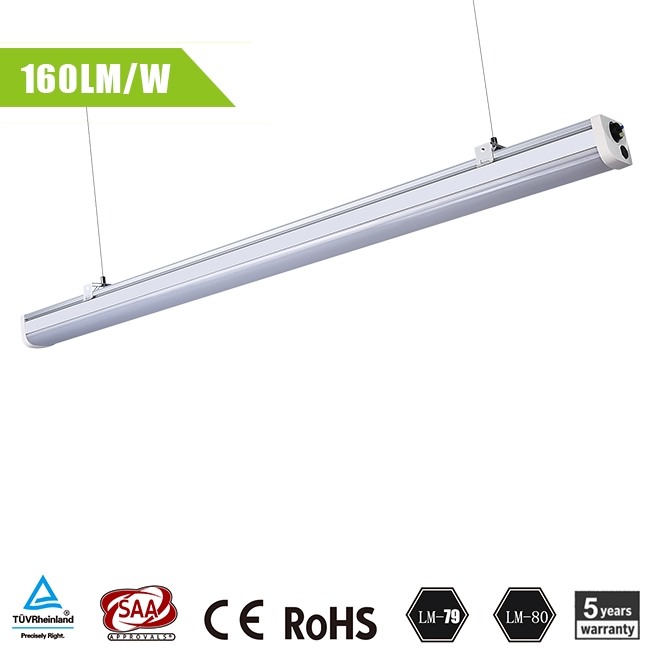

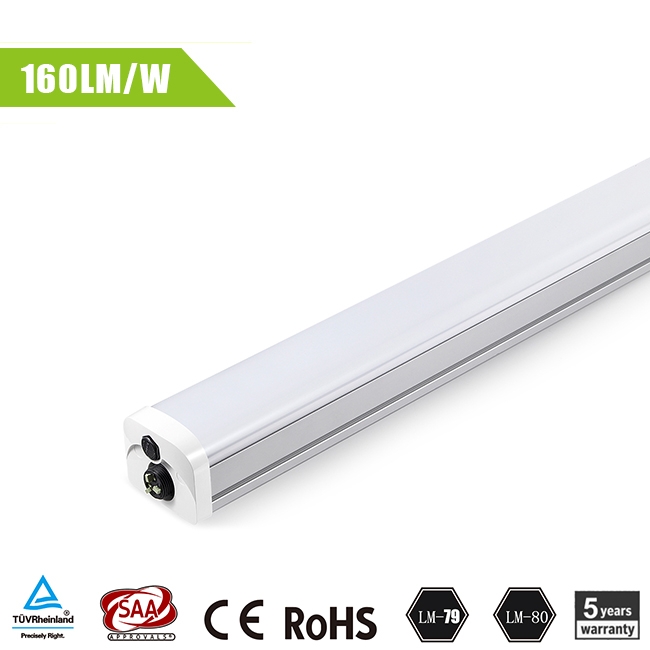

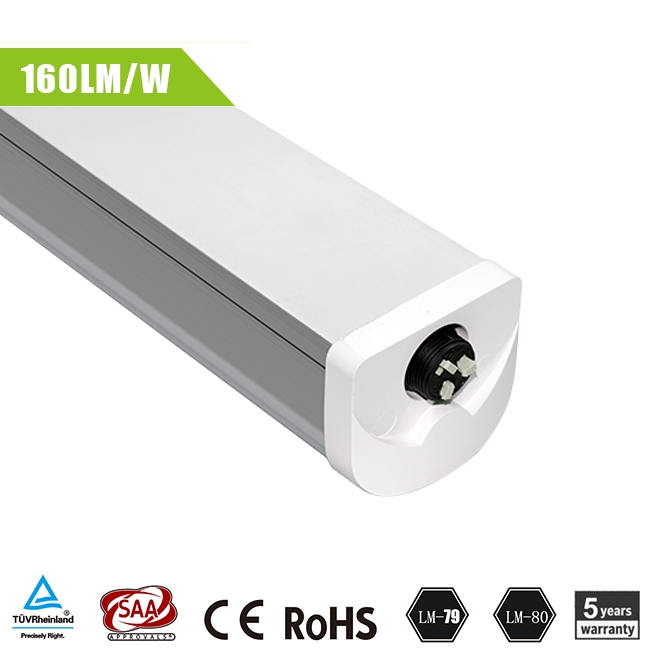

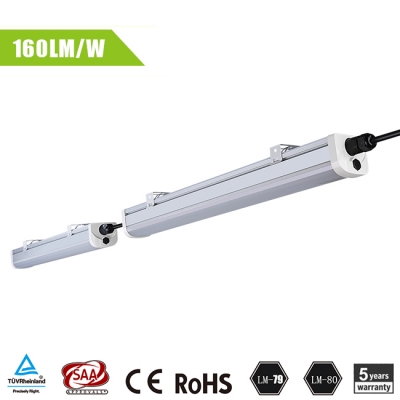

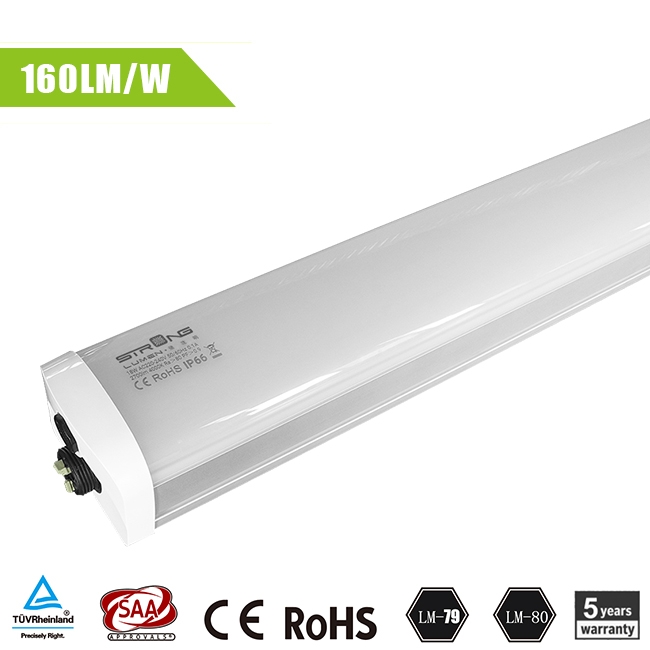

LED tri-proof half aluminum and half plastic
Performance Parameters
● Luminance Efficacy:160lm/w.
● Input Voltage:200-240VAC 50/60Hz
● Power Consumption: 18W/30W/50W
● Color Temperature: 3000K; 4000K; 5000K; 6000K;
● CRI>80
● PF>0.92
● Beam Angle: 120°
● Operation Temperature: -20~50℃
● LED Type: 2835 LED, Epistar
● Lifespan: 50,000hours
● Driver Type: Internal Driver
Product features and application environment
1. Water-proof design without adhesive, so there is no water leakage caused by adhesive aging , Convenient to disassemble;
2. Light panel and PSU adopt modular design, connected via terminals, easy and convenient to Maintain, no need of soldering;
3. Energy saving and eco-friendly, no IR or UV, no mercury contamination , RoHS compliant;
4. Aluminum profile + PC, high impact resistance, good waterproof and anti-aging performance;
5. High transmittance PC cover transmit soft light + small power LEDs, high light efficiency, uniform Light; No dark spot;
6. High efficient heat dissipation, LEDs and power supply with low temperature rise, high stability under Continuous working;
7. Can be switched on/off frequently, good color rendering performance. Compact appearance, novel design style, easy to install and transport;
8. STRONG LUMEN Tri-proof light is usually used in environment which require water-proof ,dust-proof ,corrosion-proof lighting ,such as shopping mall , warehouse and other indoor places . The lamp features with smooth surface , no dust deposition ,can be ceiling mounted or suspending mounted.
Product Dimensions
| Product |
L (mm) |
W (mm) |
H (mm) |
| SL-TPH1-18L06 |
600 |
75 |
65 |
SL-TPH1-30L12
|
1200 |
75 |
65 |
SL-TPH1-50L15
|
1500
|
75 |
65 |
chnical sp
Tcations(Taechnical specifi=25℃)
| Model |
SL-SFA00-218LT-T-H |
SL-SFA00-430LT-T-H |
SL-SFA00-550LT-T-H |
| Length |
60 cm (2 feet) |
120cm (4 feet) |
150 cm (5 feet) |
| Power |
18W |
30W |
50W |
| Weight |
0.85KG |
1.5KG |
1.8KG |
| Cover |
Diffusion |
| Energy Efficiency Class |
A++ |
| Color |
3000K / 4000K / 5000K / 6000K |
| CRI |
＞80 |
| Rated Luminous Flux (lm) |
2880 (+-5%) |
4800 (+-5%) |
8000 (+-5%) |
| Light efficiency |
160LM/W |
| Input Voltage |
200~240V AC 50/60Hz |
| THD |
≤20% |
| Beam Angle |
120° |
| Average Lifespan Ta25 ℃ |
>50,000 hours |
| Warranty |
5 years |
| Operating Temperature |
-20℃~+50℃ |
| IP Rating |
IP66 |
| Standard |
CE、RoHS、WEEE |
*Note：1）3000K comes up with lower lumen.2）Luminous Flux tolerance ±5% .
The above data are tested by Stronglumen instruments.

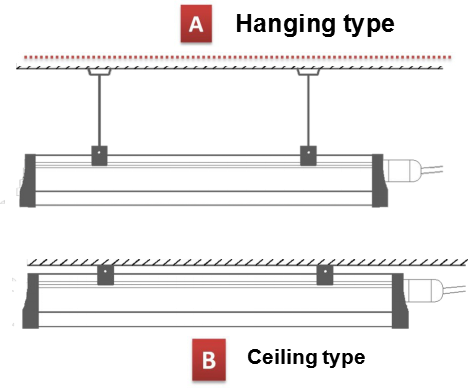

Cautions: 1
Before installation, be sure to cut off electricity to avoid electric shock. This is one end wiringLED Tri-proof light with build-in driver.
Powered by the voltage labeled on the LED Tri-proof light , no need to add other drivers.

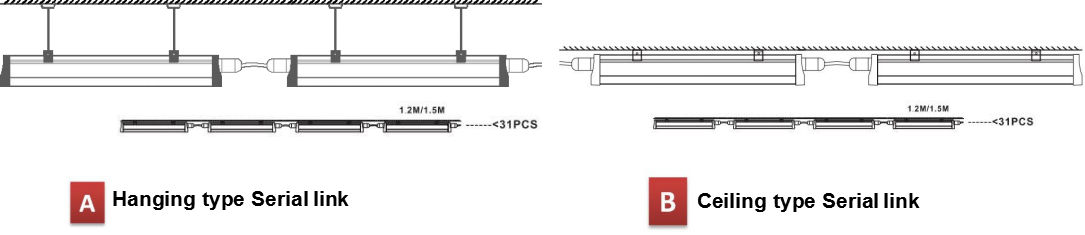

Cautions: 2
Before installation, be sure to cut off electricity to avoid electric shock. This is one end wiring LED Tri-proof light with build-in driver. Powered by the voltage labeled on the LED Tri-proof light , no need to add other drivers.

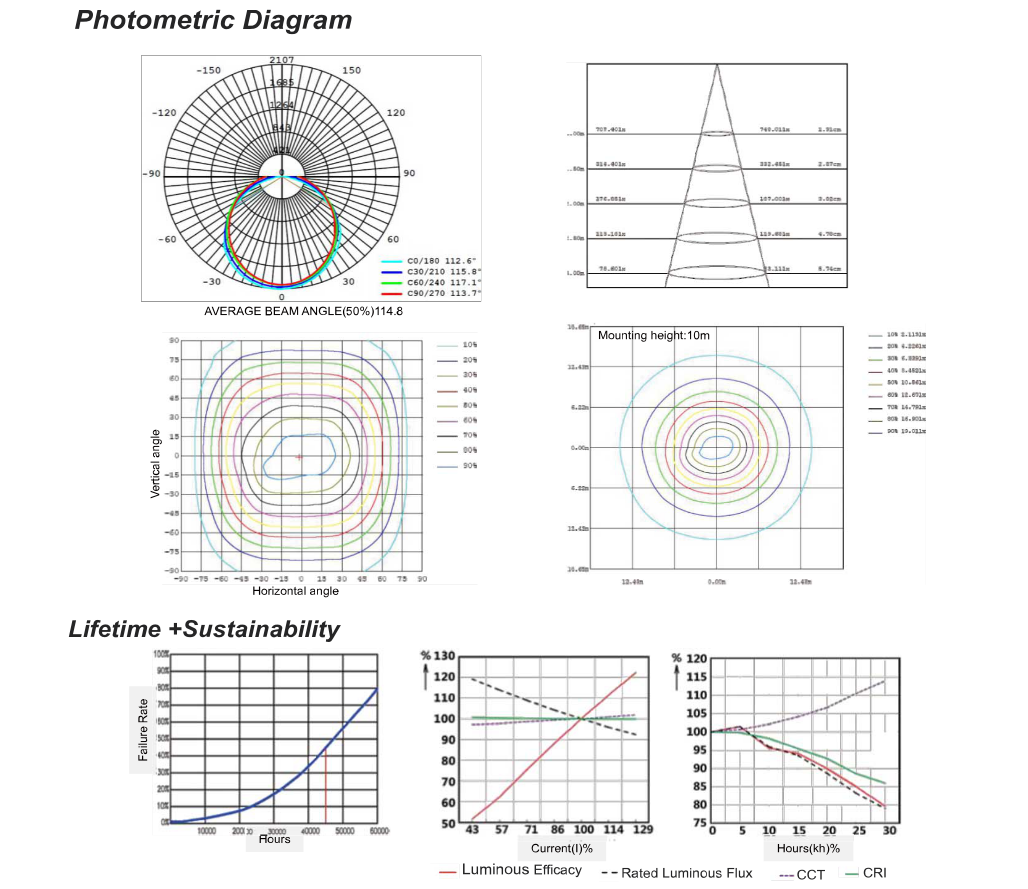

Photometric Diagram

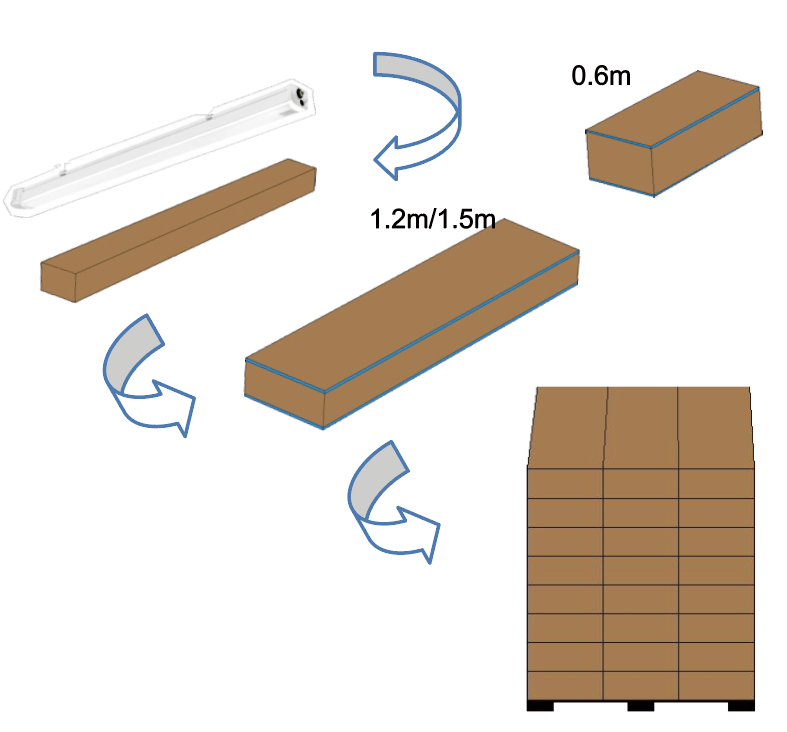

Packaging diagram

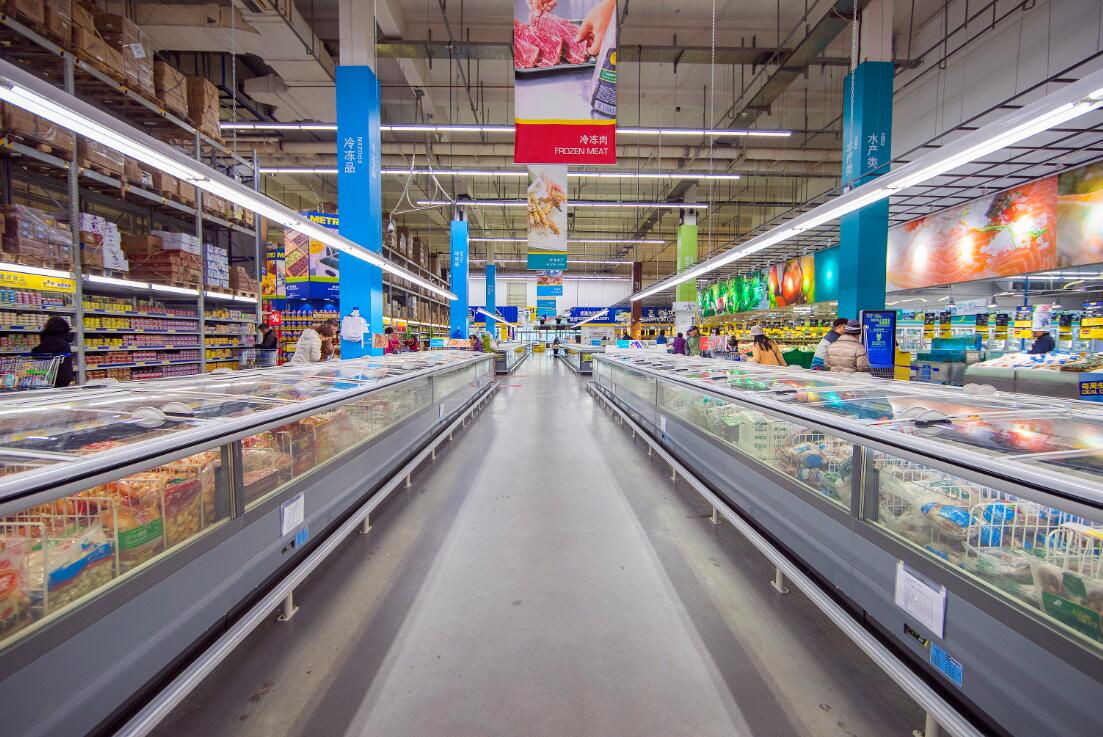

Case
