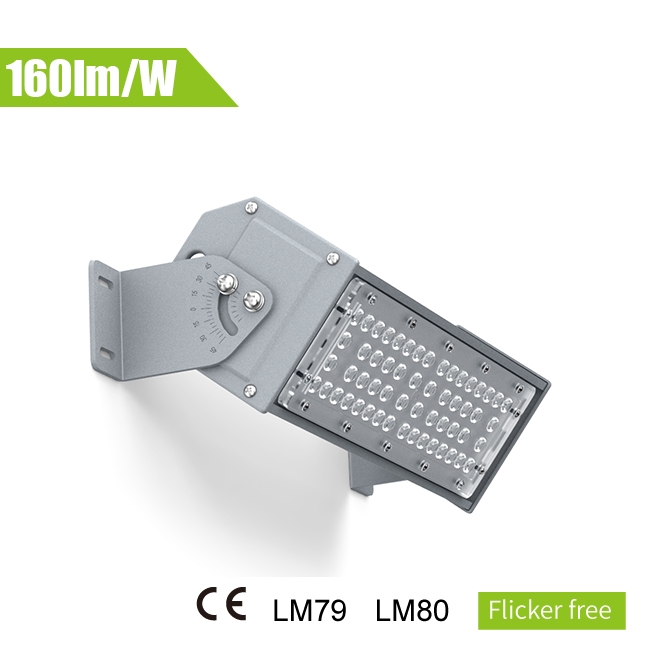

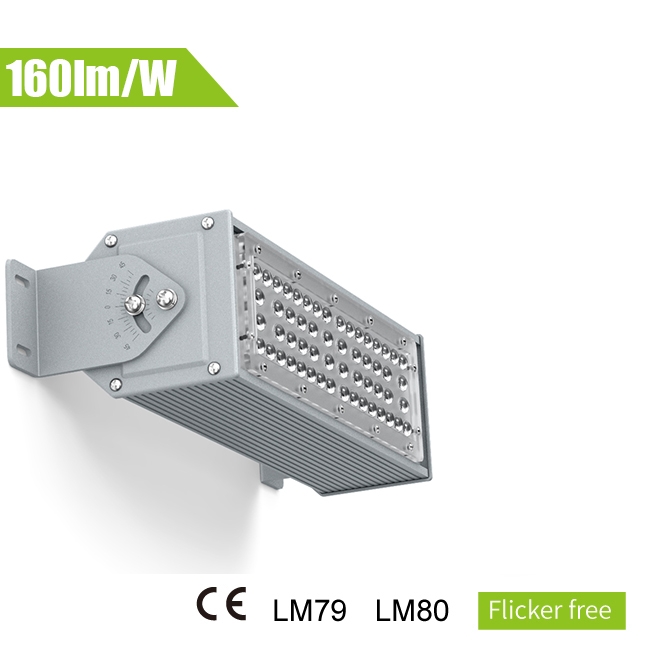

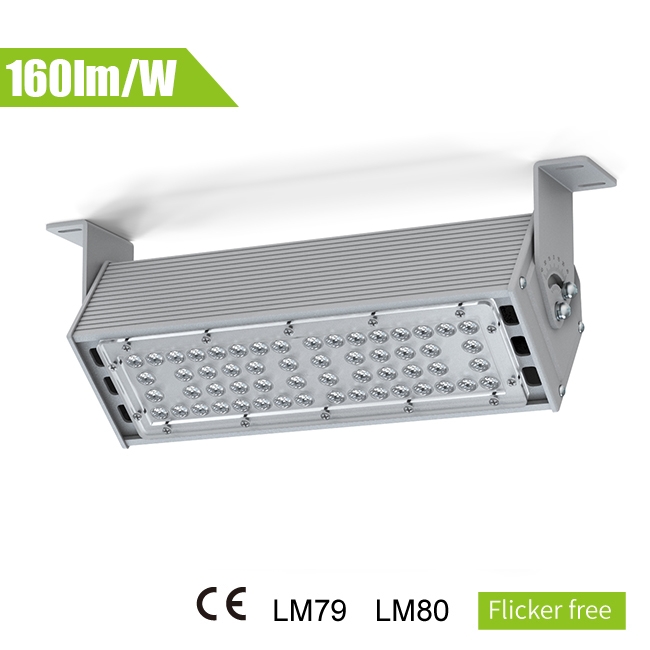

LHB04

Linear High Bay

TypeName：Linear High Bay D Series
Model: SL-LHBA00-100Y-XXXX-D
Specifications: CE ROHS

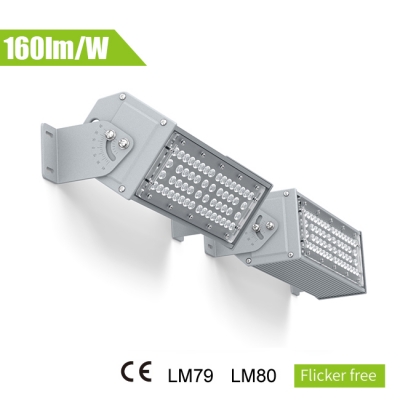

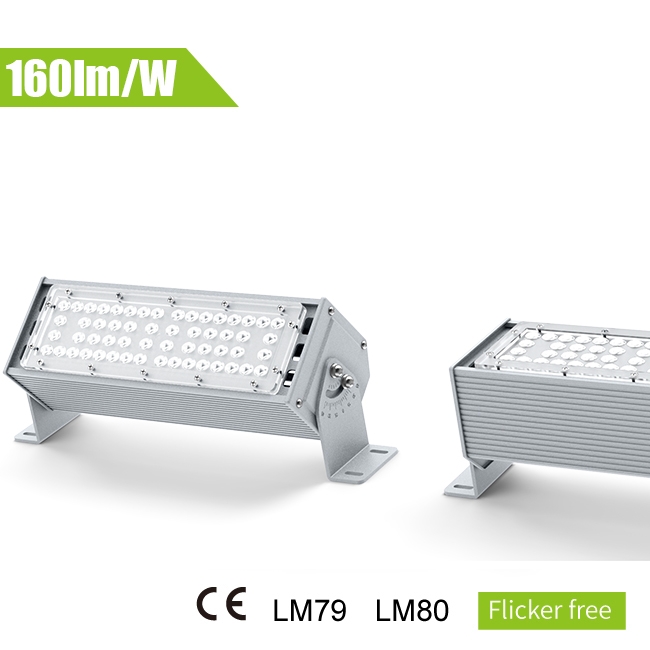

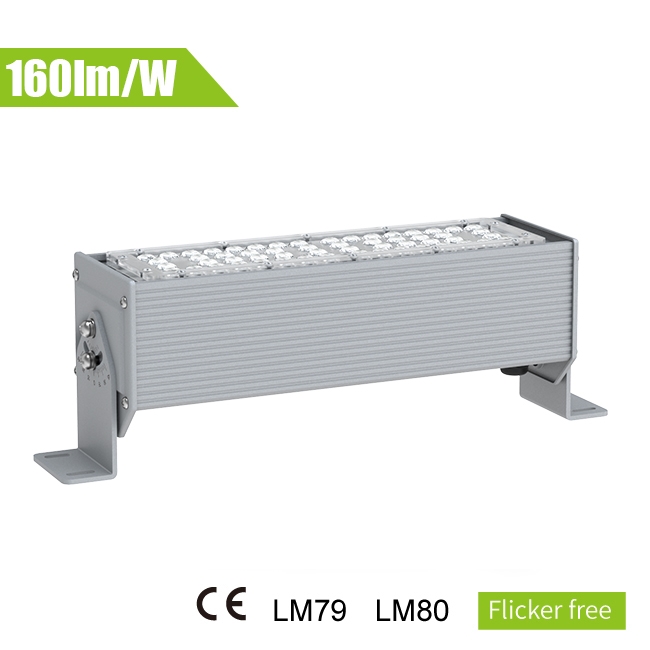

LHB04 Linear High Bay D Series

Performance Parameters
● Luminance Efficacy: 160lm/w.
● Input Voltage: 100-240VAC
● Power Consumption: 30W 50W 80W 100W 120W 150W 180W 200W 240W
● Color Temperature:3000K / 4000K / 5000K /5700K
● CRI>70
● PF>0.95
● Beam Angle:30°/60°/90°/60°*90°/60°*120°
● Operation Temperature: -40℃ ~ 45℃
● LED Type: 3030
● Lifespan: 50,000hours
● Material: Die-Cast + PC Lens.

Product Model

Model	30W	50W	80W	100W	120W	150W	180W	200W	240W
PF	>0.95
Input Voltage(V)	100-240VAC
CRI	Ra70	Ra70	Ra70	Ra70	Ra70	Ra70	Ra70	Ra70	Ra70
Efficacy (lm/W)±5%	160	160	160	160	160	160	160	160	160
Lumen Output±5%	4800	8000	12800	16000	19200	24000	28800	32000	38400
CCT (K)	3000K / 4000K / 5000K /5700K
Dimming	1-10V
Intelligent Control	No
Beam Angle	30°/60°/90°/60°90°/60°120°
Material	Die-Cast + PC Lens
Operating Tenperature	-40℃ ~ 45℃
Humidity	10%~90%

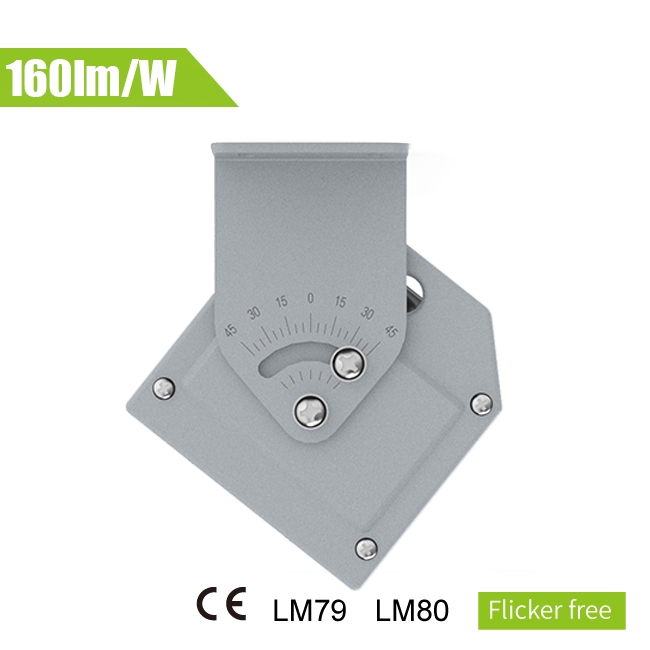

Installation	Bracket Mount / Steel wire rope
LED Type	3030
Housing	AL 6063
Cover	PC
Cable Length:	350mm
IP Rate:	IP 65
IK Rate:	IK 10
Power Supply	/
Surge Protection	/
Certification	CE / RoHS
IP Rate	IP65
Warranty	5 Years

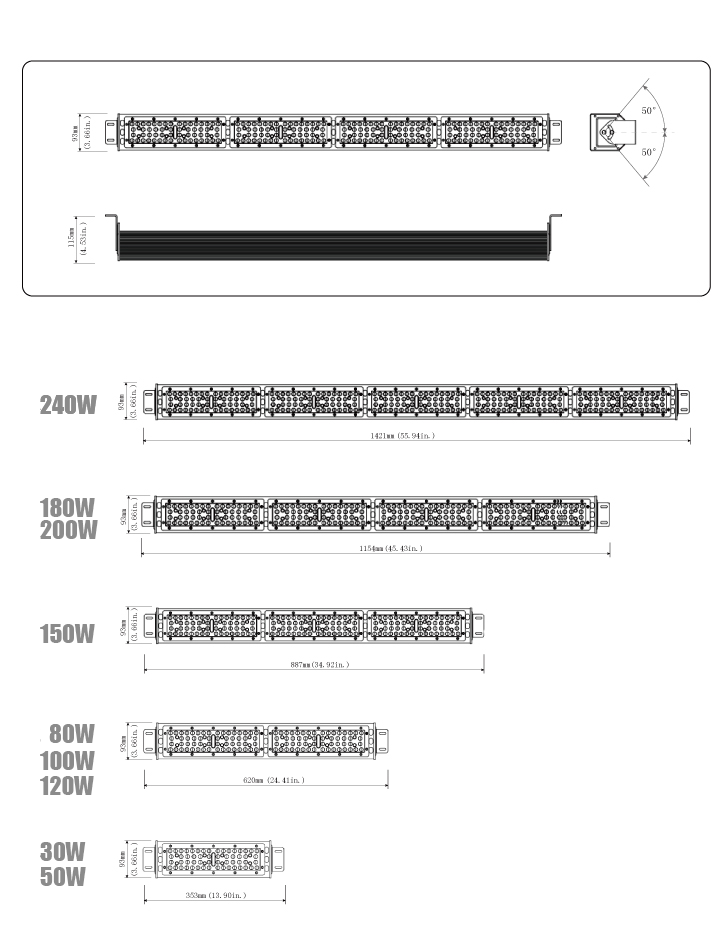

Drawing of Products

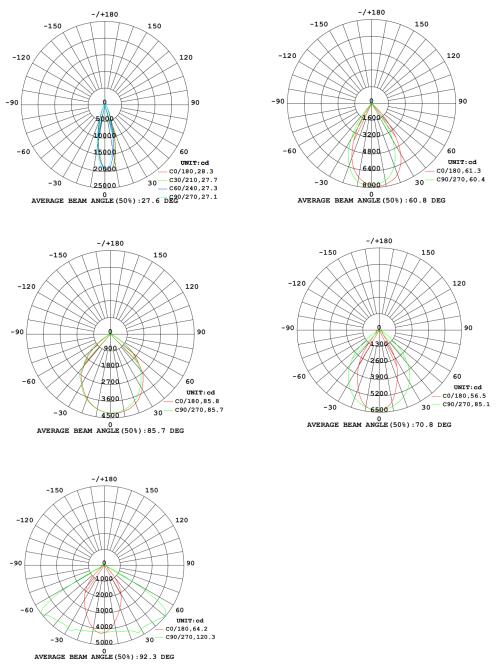

Beam angle

Packing

Model	Power（W)	Carton Size		Quantity	G.W / 1PCS±0.2KG
SL-LHBA00-30Y-XXXX-D	30W	Outer Boxes	L353W93H115	1	1.45
SL-LHBA00-50Y-XXXX-D	50W	Outer Boxes	L353W93H115	1	1.45
SL-LHBA00-80Y-XXXX-D	80W	Outer Boxes	L620W93H115	1	2.6
SL-LHBA00-100Y-XXXX-D	100W	Outer Boxes	L620W93H115	1	2.6
SL-LHBA00-120Y-XXXX-D	120W	Outer Boxes	L620W93H115	1	2.7
SL-LHBA00-150Y-XXXX-D	150W	Outer Boxes	L887W93H115	1	3.7
SL-LHBA00-180Y-XXXX-D	180W	Outer Boxes	L1154W93H115	1	4.8
SL-LHBA00-200Y-XXXX-D	200W	Outer Boxes	L1154W93H115	1	4.8
SL-LHBA00-240Y-XXXX-D	240W	Outer Boxes	L1421W93H115	1	5.7

Description: Model name description: SL-LHBA00-100Y-XXXX-D.
“SL” indicates the name of company producing the product;
“LHB” indicates the product is a LED Linear High Bay B Series ;
“A00” indicates the voltage of the product;
“100” indicates the power of the product;
“Y” indicates the colour temperature of the product. Where the “Y” can be N=3000K, M=3500K, L=4000K, K=4500K, C=5000K, H=5700K represents color temperature；
“D” indicates the shape size;

Regular Safety Test

Test Item	Structure Classification	Testing Conditions	Testing parameters	Testing Time	Limiting Value
Hipot test	▪ Class I	input-shell	1000+2U (AC)	1min	10mA Max.
	▫ Class II	input-shell	2000+4U (AC)	1min	10mA Max.
	▫ Class III	input-shell	500Vac	1min	10mA Max.
Insulation Resistance	▪ Class I	input-shell	500Vdc	1min	2MΩ Min.
	▫ Class II	input-shell	500Vdc	1min	4MΩ Min.
	▫ Class III	input-shell	100Vdc	1min	1MΩ Min.
Insulation Resistance	▪ Class I	input-shell	220V/50Hz	10S	0.5mA Max.
Insulation Resistance	▫ Class II	input-shell	220V/50Hz	10S	1.0mA Max.
Ground Resistance	▪ Class I	Grounding wirmetal shell	10A	1min	500mΩ Max.

Product Certification

Certification Categories	Conform to the standard specification	Meet Certified	Certified
CE	EN60598-1; EN60598-2-1; EN62493; EN55015; EN61000-3-2; EN61000-3-3; EN61547; EN62471	√	√
SAA	IEC60598-2-1:1979(First Edition)+A1:1987 used in conjunctionWith IEC60598-1:2014(Eighth Edition)
RoHS	2011/65/EU directive (RoHS 2.0)
Energy Star	ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures) Eligibility Criteria Version 2.0

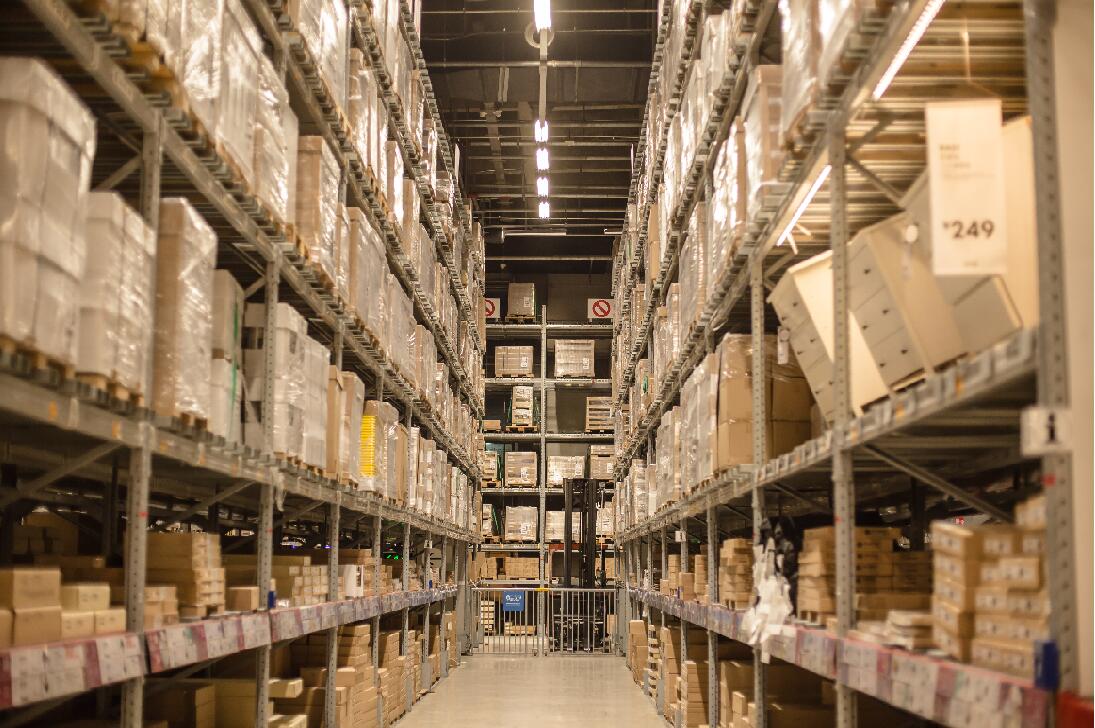

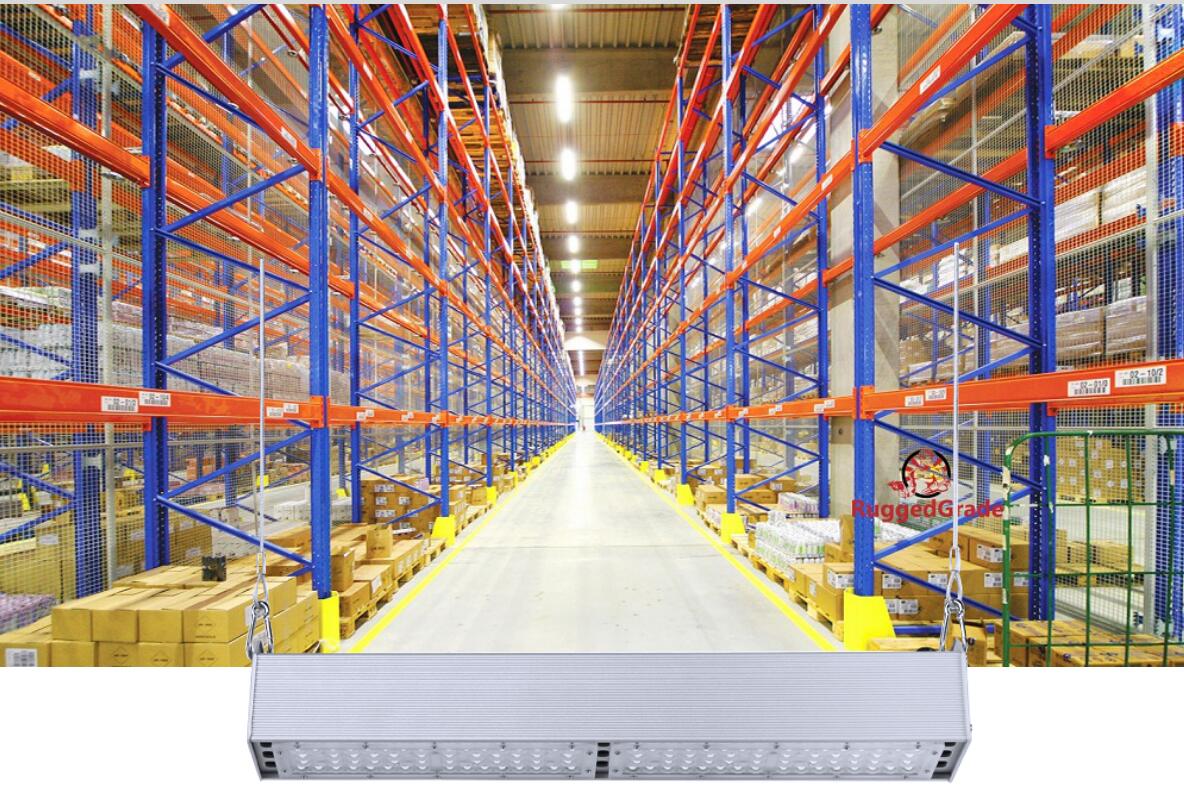

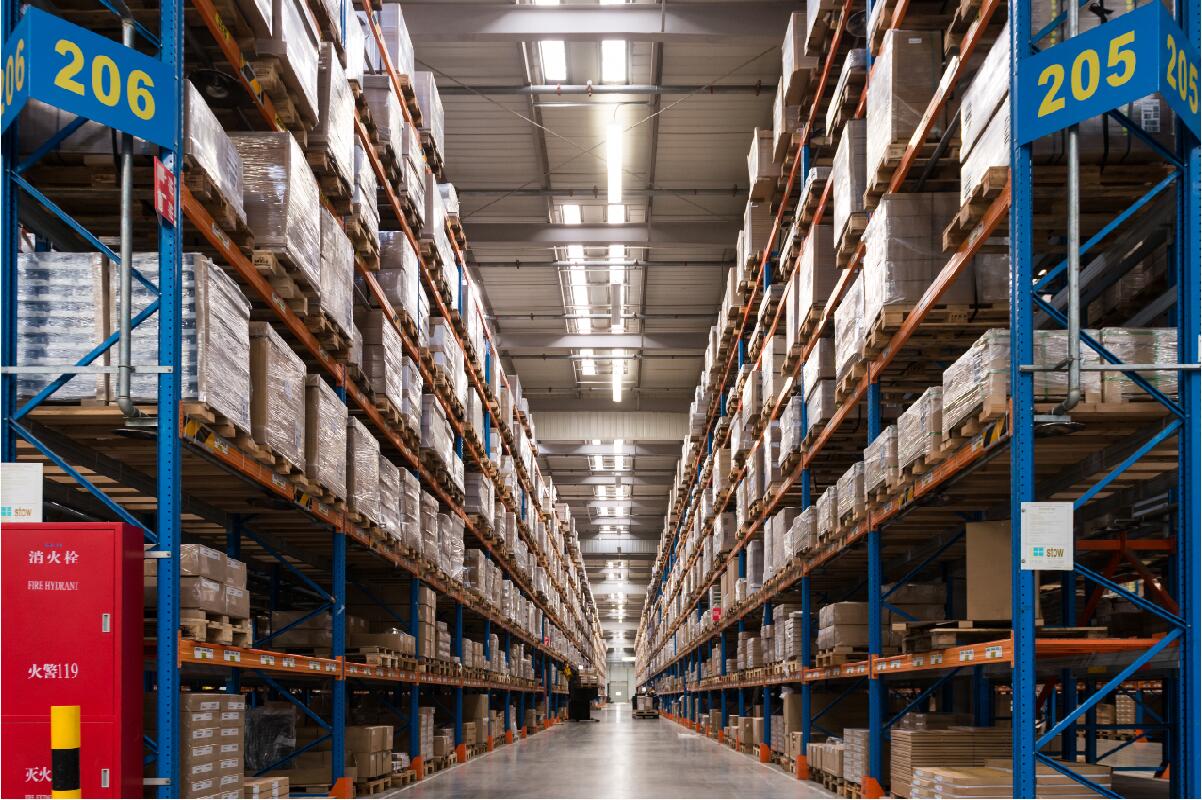

Case
