PLE6060 LED Panel Details
Performance Parameters
● Luminance Efficacy: Frosted Cover:100lm/w. 120lm/w. 130lm/w.
● Input Voltage:AC185-265V
● Power Consumption: 27W 36W
● Color Temperature: 3000K± 200K 4000K± 250K 5000K± 300K 6000K± 400K
● Beam Angle: 120°
● Operation Temperature: -10~40℃
● Storage Temperature :-20℃ to +85℃
● LED Type:2835 LED,4014LED
● Lifespan: ＞50,000hours
● Driver Type: Isolation Driver
● IP Code : IP20
● IK Code : IK01
● Operating Humidity : 10-80%
Product Model
Model No.
|
Power
|
Efficacy
|
Luminous Flux
|
Led Type
|
Led Quantity
|
CRI
|
| SL- PLE606027 |
27W |
100LM/W |
>2700LM |
2835/4014 |
192PCS |
>80 |
| 120LM/W |
>3240LM |
2835/4014 |
192PCS |
>80 |
| 130LM/W |
>3510LM |
2835/4014 |
192PCS |
>80 |
| SL-PLE606036 |
36W |
100LM/W |
>3600LM |
2835/4014 |
238PCS |
>80 |
| 120LM/W |
>4320LM |
2835/4014 |
238PCS |
>80 |
| 130LM/W |
>4680LM |
2835/4014 |
238PCS |
>80 |
Drawing of Products
1. All dimensions are in millimeters.
2. The tolerance for all dimensions is ± 0.5mm, unless otherwise specified.
Product Features
● Eye protection without glaring.

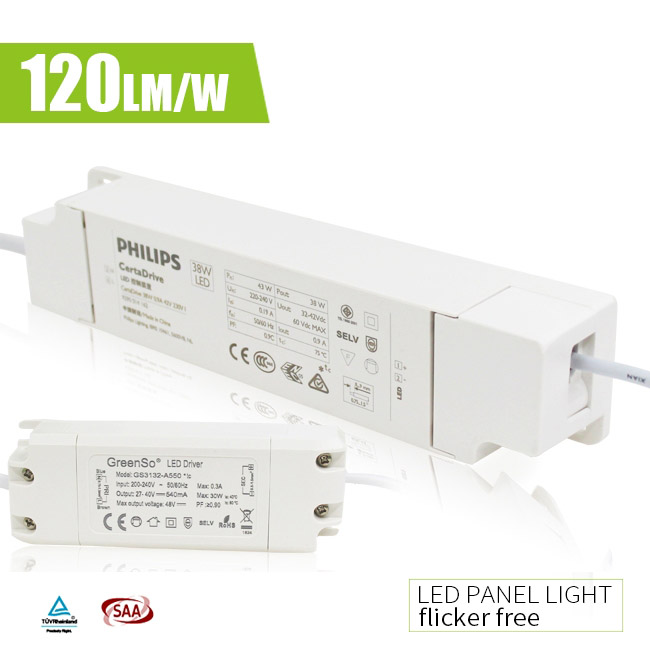

● TUV/CE certified high quality driver.
● Perfectly designed radiator.
● Suitable for all kinds of dimming control.
● A variety of installation methods (suspended, recessed, surface mounted).
● High transparant light guide plate.
● No dark areas, no white spots, no light flashes.
Photometric Data
Installation
Step 1: Fasten 4 jump rings on the panel with screws and nuts;
Step 2: Connect the AC input wire of the driver to the electric supply and then connect the driver with the connector of the lamp;
Step 3: Insert the jump rings into the pre-opened hole;
Step 4: The installation is finished.
.jpg)
Step 1: Fix two ceiling angle irons on the ceiling with the expansion pipe and screws;
Step 2: Connect the AC input wire of the driver to the electric supply and then connect the driver with the connector of the lamp;
Step 3: Fix the lamp on the ceiling angle iron with screws and nuts;
Step 4: The installation is finished.
Step 1: Lay the frame flat;
Step 2: Place the lamp flat in the frame;
Step 3: Use the original fine wire of the ceiling to pass through the corner holes of the lamp to fix the lamp;
Step 4: Connect the AC input wire of the driver to the electric supply, and then the installation is finished.
Step 1:Insert the steel wire rope into the corner hole of the lamp;
Step 2: Fix the 4 steel wire fasteners on the ceiling, thread the steel wire rope into them, and adjust the height;
Step 3: Install the underneath components;
Step 4: The installation is finished.
Step 1: This installation way must be equipped with a corner brace connection with a reverse function;
Step 2: Connect the AC input wire of the driver to the electric supply;
Step 3: Insert the curved part of the lamp into the keel;
Step 4: The installation is finished.
