UFO High Bay Lights

< >

UFO04

UFO04 D Series

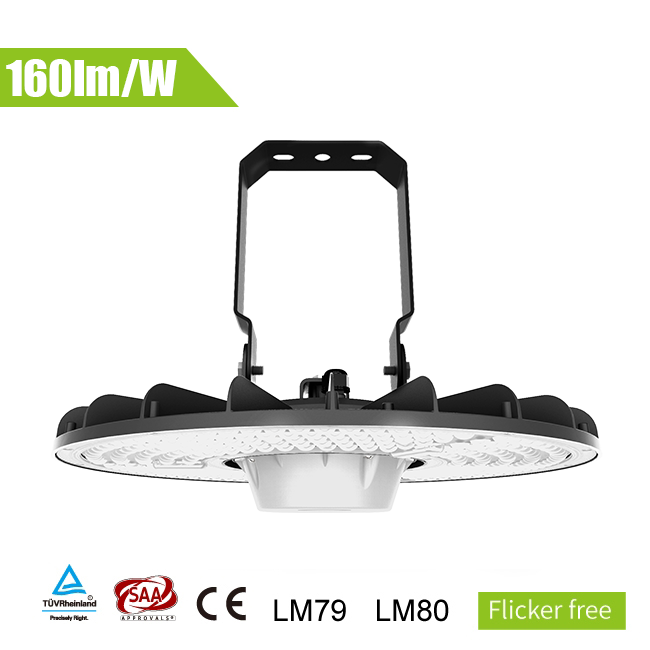

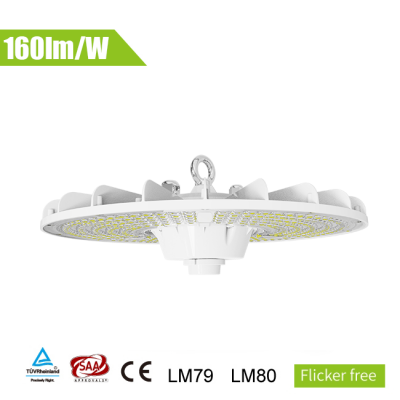

Name：160LM/W LED High Bay Light
Certificate: CE SAA UL ROHS

5 Years Warranty Super Bright LED High Bay Lights 80w 100w 120w 150w 200W 160lm/w 32000lm UFO High Bay Led Shop Lights Industrial Warehouse Workshop Factory Barn Garage Area Lighting Fixture

Specification

Model	80W		100W		120W		150W		200W
PF	>0.95
Input Voltage(V)	100-240VAC
CRI	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80	Ra70	Ra80
Efficacy(lm/W)±5%	160	150	160	150	160	150	160	150	160	150
Lumen Output±5%	12800	12000	16000	15000	19200	18000	24000	22500	32000	30000
CCT (K)	4000K/5000K
Dimming	1-10V Dimming (Default)
Intelligent Control	Motion Sensor
Beam Angle	60° / 90° / 120°
Material	Die-Cast + PC Lens
Operating Tenperature	-40℃ ~ 45℃
Humidity	10%~90%

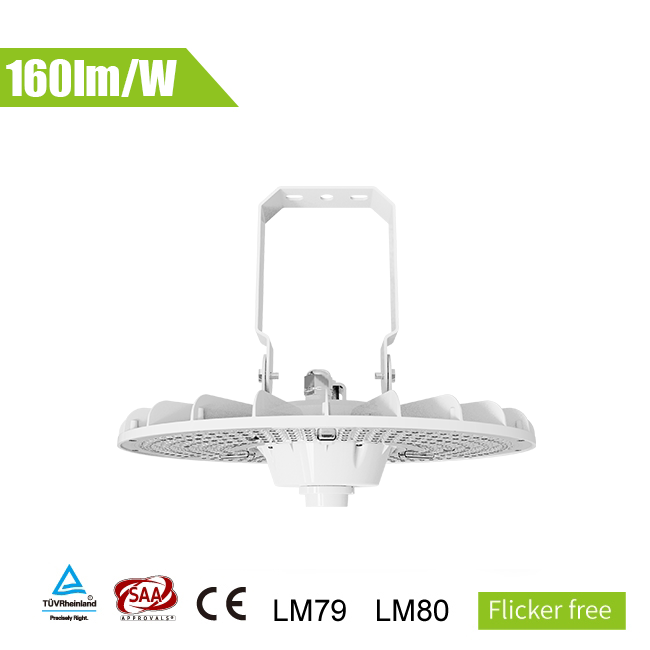

Installation	O-Ring Mount, Trunnion Mount
LED Type	2835
Power Supply	Stronglumen
Surge Protection	4kV line-line, 6kV line-earth
Certification	CE / RoHS / SAA
IP Rate	IP65
Warranty	5 Years

Product Size

Dimension:LHW(mm)	Ø402（15.84in.）H143(5.62in.) / Ø334(13.14in.)148(5.82in.)
Dimension:LHW(mm)	Die-Cast
Cover	Transparent PC
Cable Length	400mm
IP Rate	IP 65
IK Rate	IK 10

Structure Drawing

Beam Angle

Installation

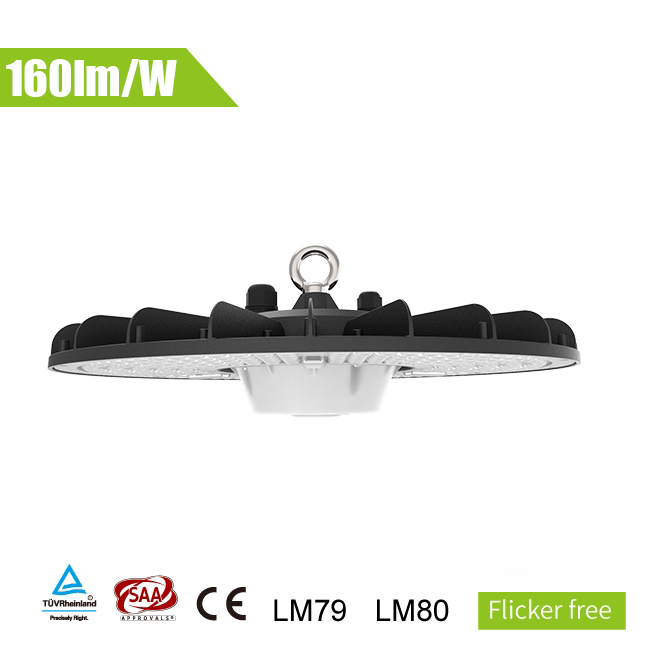

1.Ring mounted

Regular Safety Test

Test Item	Structure Classification	TestingConditions	Testing parameters	Testing Time	Limiting Value
Hipot test	▪ Class I	input-shell	1000+2U (AC)	1min	10mA Max.
	▫ Class II	input-shell	2000+4U (AC)	1min	10mA Max.
	▫ Class III	input-shell	500Vac	1min	10mA Max.
Insulation Resistance	▪ Class I	input-shell	500Vac	1min	2MΩ Min.
	▫ Class II	input-shell	500Vac	1min	4MΩ Min.
	▫ Class III	input-shell	100Vac	1min	1MΩ Min.
Leakage Current	▪ Class I	input-shell	220V/50Hz	10S	0.5mA Max.
Leakage Current	▫ Class II	input-shell	220V/50Hz	10S	1.0mA Max.
Ground Resistance	▪ Class I	Grounding wirmetal shell	220V/50Hz	1min	500mΩ Max

Product Certification

Certification Categories	Conform to the standard specification	Meet Certified	Certified
CE	EN60598-1; EN60598-2-1; EN62493; EN55015; EN61000-3-2; EN61000-3-3; EN61547; EN62471	√	√
SAA	IEC60598-2-1:1979(First Edition)+A1:1987 used in conjunctionWith IEC60598-1:2014(Eighth Edition)	√	√
RoHS	2011/65/EU directive (RoHS 2.0)	√	√
nergy Star	ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures)Eligibility Criteria Version 2.0

Light compensation

According to the setting, the illuminance can be automatically adjusted while the external environment changes.

Microwave Motion Sensor

Packing

Model No.	Power (W)	Carton Size (mm)		Quantity	G.W / 1PCS±0.2KG
SL-UFOA00-80Y-XXXX-D-T	80W	Inner Boxes	L405W175H400mm	1 PC	2.9
SL-UFOA00-80Y-XXXX-D-T	80W	Outer Cartons	L895W415H420mm	5 PCS	15.9
SL-UFOA00-100Y-XXXX-D-T	100W	Inner Boxes	L405W175H400mm	1 PC	2.9
SL-UFOA00-100Y-XXXX-D-T	100W	Outer Cartons	L895W415H420mm	5 PCS	15.9
SL-UFOA00-120Y-XXXX-D-T	120W	Inner Boxes	L405W175H400mm	1 PC	2.9
SL-UFOA00-120Y-XXXX-D-T	120W	Outer Cartons	L895W415H420mm	5 PCS	15.9
SL-UFOA00-150Y-XXXX-D-T	150W	Inner Boxes	L456W150H462mm	1 PC	4.2
SL-UFOA00-150Y-XXXX-D-T	150W	Outer Cartons	L765W470H480mm	5 PCS	22.9
SL-UFOA00-200Y-XXXX-D-T	200W	Inner Boxes	L456W150H462mm	1 PC	4.2
SL-UFOA00-200Y-XXXX-D-T	200W	Outer Cartons	L765W470H480mm	5 PCS	22.9

Description:

Model name description: "SL-UFOA00-200Y-RXXX-D-T ".

“SL” indicates the name of Strong Lumen;

“UFO” indicates the product of LED High Bay Lights ;

“A00” indicates the voltage of the product;

“200” indicates the power of the UFO High Bay Light;

“Y” indicates the colour temperature of the light. Where the “Y” can be N=3000K, M=3500K, L=4000K, K=4500K, C=5000K,H=5700K；

“D” indicates the shape size;

“T” indicates the Luminance Efficacy T=160lm/w S=200lm/w .
