UFO High Bay Lights

UFO05

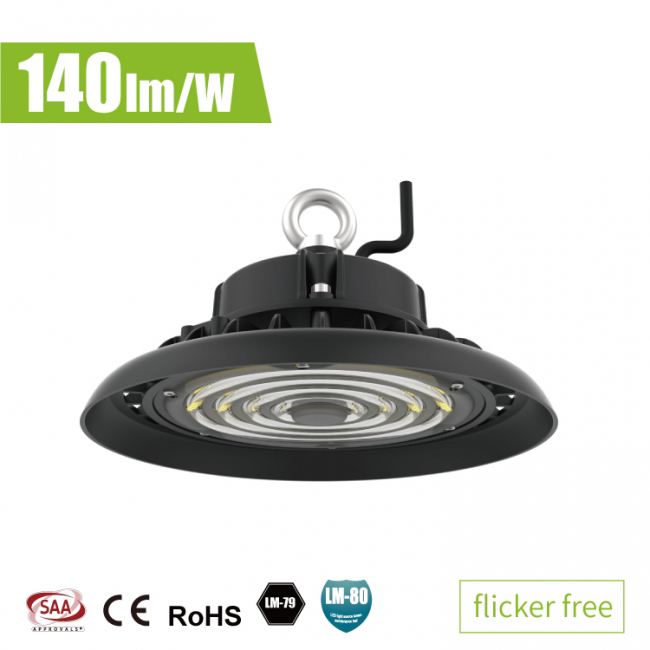

UFO05 LED High Bay Light
    • TypeName：LED High Bay Light
    • Certificate: CE SAA UL ROHS


  • Specification

    Model 70W 100W 150W 200W
    PF >0.95
    Input Voltage(V) 200-240VAC
    CRI Ra70 Ra80 Ra70 Ra80 Ra70 Ra80 Ra70 Ra80
    Efficacy(lm/W)±5% 140 130 140 130 140 130 140 130
    Lumen Output±5% 9800 9100 14000 13000 21000 19500 28000 26000
    CCT (K) 3000K / 4000K / 5000K / 6000K
    Dimming Non-Diming (Default) / 1-10V Dimming
    Intelligent Control Motion Sensor
    Beam Angle 60° / 90° / 120°
    Material Die-Cast + PC Lens
    Operating Tenperature -40℃ ~ 45℃
    Humidity 10%~90%
    Installation Ring Mounted
    LED Type 2835
    Power Supply ZH
    Surge Protection 4kV line-line, 5kV line-earth
    Certification CE / RoHS / SAA
    IP Rate IP65
    Warranty 5 Years
    Packing

    Model No. Power (W) Size (mm) Carton Size (mm) G.W / 1PCS±0.2KG
    SL-UFOA00-060Y-RXXX-E 70W Ø258(10.15in.)*H155(6.10in.) L270（10.62in.) * W270(10.62in.) * H130(5.11in.) 2.23KG
    SL-UFOA00-100Y-RXXX-E 100W Ø258(10.15in.)*H155(6.10in.) L270（10.62in.) * W270(10.62in.) * H130(5.11in.) 2.23KG
    SL-UFOA00-150Y-RXXX-E 150W Ø299(11.77in.)*H155(6.10in.) L305（12.00in.) * W305(12.00n.) * H140(5.51in.) 2.59KG
    SL-UFOA00-200Y-RXXX-E 200W Ø347(13.66in.)*H159(6.25in.) L355（13.97in.) * W355(12.00n.) * H140(5.51in.) 3.43KG

    Model name description: "SL-UFOA00-060Y-XXXX-E".
    “SL” indicates the name of company producing the product;
    “UFO” indicates the product is a LED High Bay;
    “A00” indicates the voltage of the product;
    “060” indicates the power of the product;
    “Y” indicates the colour temperature of the product. Where the
    “Y” can be N=3000K, M=3500K, L=4000K, K=4500K, C=5000K, H=5700K represents color temperature；
    “XXXX”Where XXXX represent light angle, it can be R060,R090,R120;
    “E” indicates the shape size;
    Product Size

    Structure Performance
    Housing Die-Cast
    Cover Transparent PC
    Cable Length 350mm
    IP Rate IP65
    IK Rate IK10
    Structure Drawing
    Beam Angle
    Installation
    Regular Safety Test
    Test Item Structure Classification TestingConditions Testing parameters Testing Time Limiting Value
    Hipot test ▪ Class I input-shell 1000+2U (AC) 1min 10mA Max.
    ▫ Class II input-shell
    ▫ Class III input-shell 500Vac 1min 10mA Max.
    Insulation Resistance ▪ Class I input-shell 500Vac 1min 2MΩ Min.
    ▫ Class II input-shell 500Vac 1min 4MΩ Min.
    ▫ Class III input-shell 100Vac 1min 1MΩ Min.
    Leakage Current ▪ Class I input-shell 220V/50Hz 10S 0.5mA Max.
    ▫ Class II input-shell 220V/50Hz 10S 1.0mA Max.
    Ground Resistance ▪ Class I Grounding wirmetal shell 10A 1min 500mΩ Max.
    Product Certification

    Certification Categories Conform to the standard specification Meet Certified Certified
    CE EN60598-1; EN60598-2-1; EN62493; EN55015; EN61000-3-2; EN61000-3-3; EN61547; EN62471 √ √
    SAA IEC60598-2-1:1979(First Edition)+A1:1987 used in conjunction With IEC60598-1:2014(Eighth Edition) √ √
    RoHS 2011/65/EU directive (RoHS 2.0) √ √
    Energy Star ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures)Eligibility Criteria Version 2.0
